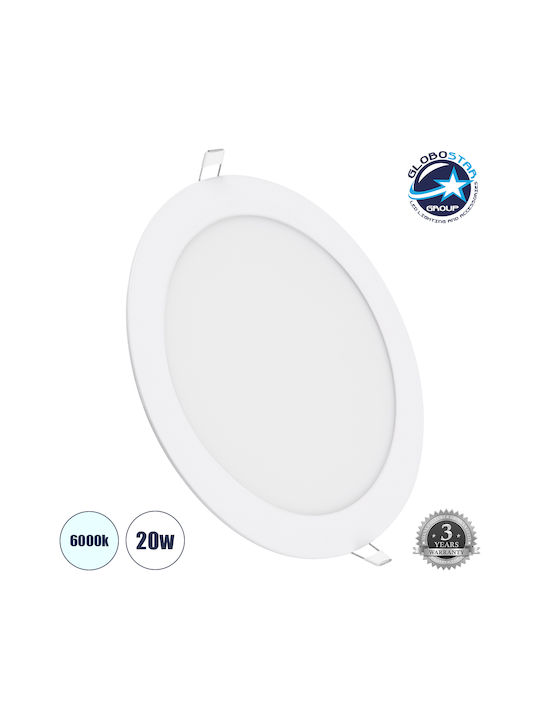

TECHNICAL DATA

• Brand: GLOBOSTAR LED LIGHTING AND ACCESSORIES GROUP
• Series: LED PANELS
• Product Identification Code: 60188
• Category/Product Type: LED Panel - LED Panel
• Installation Method: Recessed
• Energy Consumption: 20 W
• Equivalent: 100 W
• Energy Saving: >80%
• Nominal Voltage: AC 175..265 V
• Network Frequency: 50..60 Hz
• Power Factor λ: > 0.65
• LED Type: SANAN SMD 2835
• Useful Luminous Flux: 2180 lm
• Luminous Flux Efficiency: 109 lm/W
• Energy Efficiency Class: F
• Color Temperature: 6000 K
• Light Color: Cool White
• Color Rendering Index Ra: > 80
• Chromatic Uniformity in McAdam Ellipses: ≤ 6 SDCM
• Luminous Flux Maintenance Factor: 0.92
• Displacement Factor (cos φ1): 0.92
• Flicker Measurement: 0.02 Pst LM Flicker Free
• Stroboscopic Effect Measurement: 0.001 SVM
• Beam Angle: 120° Wide Cone
• Operating Temperature Range: -10…+40 °C
• Protection Rating: IP20
• Dimmable: No
• Nominal Lifespan: 30000 Hours
• Number of Switching Cycles: 20000 On / Off Cycles
• Certificates & Standards: CE EMC Directive 2014/30/EU, CE LVD Directive 2014/35/EU, RoHS 2 Directive 2011/65/EU
• Mercury Content: 0.0 mg
• UV / IR: 0.0 mg
• 100% Start-up Time:

DIMENSIONS & WEIGHT

• Product Dimensions: D22 x H1.9cm
• Compatible Cut-out Hole: Q18~20cm
• Product Weight: 280g
• Packaging Type: Color Packaging GloboStar®
• Quantity per Package: 1 Pc.
• Quantity per Master Package (Box): 20 Pcs.
• Packaging Dimensions: L26 x W23.5 x H2.5cm
• Product Weight with Packaging: 355g
• Master Package Dimensions (Box): L49 x W30 x H28cm
• Net Weight of Master Package (Box): 7820g
• Volumetric Weight of Master Package (Box): 8232g
• Shipping Method: Any Method (Courier or Transport)
