Shimano Tourney FD-TX800-TS6 Ngle 66-69 Front Bicycle Derailleurs 6 / 7 Gears
Bicycle Derailleurs

Shimano Tourney FD-TX800-TS6 Ngle 66-69 Front Bicycle Derailleurs 6 / 7 Gears Code: EFDTX800TSX6

Front derailleur Shimano Tourney FD-TX800 3x7/8 34.9mm, compatible with a frame that pulls from above.

The SHIMANO TOURNEY TX800 derailleur offers precise shifting with HYPERDRIVE technology for...

Front derailleur Shimano Tourney FD-TX800 3x7/8 34.9mm, compatible with a frame that pulls from above.

The SHIMANO TOURNEY TX800 derailleur offers precise shifting with HYPERDRIVE technology for 3x8-speed systems.

  • Model: FD-TX800-TS6
  • Series: TOURNEY
  • Action: TOP SWING
  • Clip Design: Angled
  • Tooth Difference: 10T
  • Cable Routing Type: Dual-Pull
  • Chain Line (mm):...
See full description See full description
  • Bicycle Mountain, Trekking

  • Speeds

    Select based on the number of gears on your bike's rear cassette. An 11-speed drivetrain may not be compatible with a 6-speed system and vice versa.
  • See all
Product report

Description

Description

Front derailleur Shimano Tourney FD-TX800 3x7/8 34.9mm, compatible with a frame that pulls from above.

The SHIMANO TOURNEY TX800 derailleur offers precise shifting with HYPERDRIVE technology for 3x8-speed systems.

  • Model: FD-TX800-TS6
  • Series: TOURNEY
  • Action: TOP SWING
  • Clip Design: Angled
  • Tooth Difference: 10T
  • Cable Routing Type: Dual-Pull
  • Chain Line (mm): 47.5/50
  • Fixed Chain Angle (deg.): 66-69
  • Compatible Chain: HG 8/7/6 speed
  • Clamp Band (mm): 28.6 (with S adapter), 31.8 (with M adapter), 34.9
  • 1st Gear Teeth: 42T, 48T
  • Total Capacity: 20T
  • Front Speeds: 3
  • Rear Speeds: 8/7

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
EFDTX800TSX6

Product Details

Placement
Front
Usage
Mountain, Trekking

Technical Specifications

Number of Gears
6, 7

Number of Gears

Select based on the number of gears on your bike's rear cassette. An 11-speed drivetrain may not be compatible with a 6-speed system and vice versa.
Cage Length
-

Cage Length

The cage length determines how much "excess" chain the derailleur can take up, depending on your gears.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Reviews (2)

Reviews

5.0
2
5.0
Review this product
  1. 2
  2. 4 stars
    0
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product
  • stgeo
    5
    6 out of 6 members found this review helpful
    stgeo

    Verified purchase

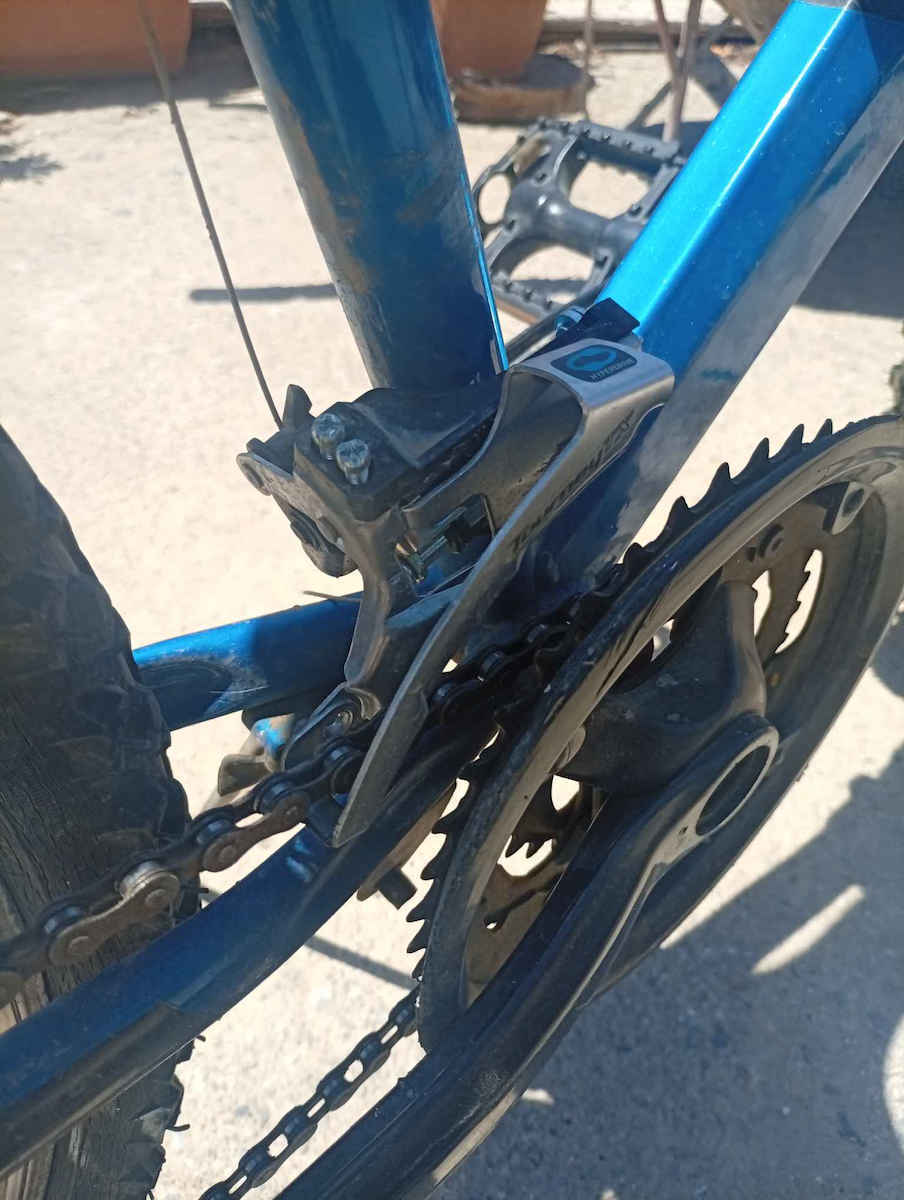

    Easy to install and unlike the TZ-500, it remains quiet in all possible speed combinations (without finding it in the chain), which surprised me.
