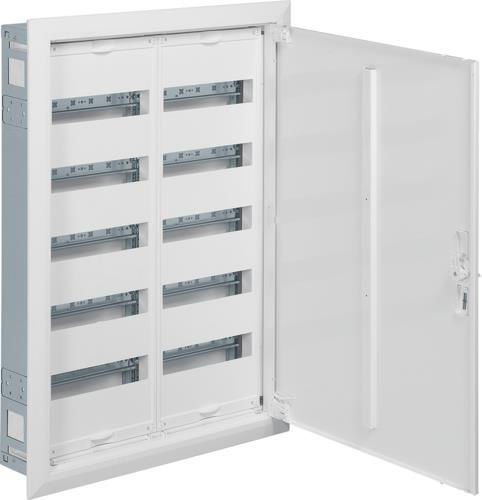

Hager Univers Walled 24-Elements Fuse Box with 5 Rows W550xH800xD112mm
Fuse Box

Hager Univers Walled 24-Elements Fuse Box with 5 Rows W550xH800xD112mm Code: FWU52S

Technical characteristics

  • Functions
  • With cable entry: yes
  • Electrical current
  • Rated current: 125 A
  • Cover, door
  • Lock type: Folding handle with eccentric
  • Cover type: With pre-cut openings
  • Door lock:...

Technical characteristics

  • Functions
  • With cable entry: yes
  • Electrical current
  • Rated current: 125 A
  • Cover, door
  • Lock type: Folding handle with eccentric
  • Cover type: With pre-cut openings
  • Door lock: None
  • Door: Single
  • Transparent door: no
  • Materials, finish, colors
  • Color: white
  • RAL color: RAL 9010 - Pure white
  • Material: steel
  • Surface treatment type: Powder...
See Description & Specifications See Description & Specifications

Learn more about invoicing
Review the product
Product report

Description & Specifications

Technical characteristics

  • Functions
  • With cable entry: yes
  • Electrical current
  • Rated current: 125 A
  • Cover, door
  • Lock type: Folding handle with eccentric
  • Cover type: With pre-cut openings
  • Door lock: None
  • Door: Single
  • Transparent door: no
  • Materials, finish, colors
  • Color: white
  • RAL color: RAL 9010 - Pure white
  • Material: steel
  • Surface treatment type: Powder coating
  • Dimensions
  • Installation depth: 112 mm
  • Recess depth in wall: 115 mm
  • Installed product depth: 125 mm
  • Internal depth: 119 mm
  • Installed product height: 853 mm
  • Installation height: 853 mm
  • Installed product width: 603 mm
  • Width in division units: 24
  • Cabinet material thickness: 1 mm
  • Installation, mounting
  • Suitable for outdoor use: no
  • Connection conditions
  • Number of input conductors: 4
  • Equipment
  • Number of rows: 10
  • Number of fields across: 2
  • Number of keys: 1
  • Number of rails in the panel: 10
  • Supports accessories: yes
  • Number of openings for cable entry flanges: 4
  • Expansion possibility: no
  • Standards
  • Glow Wire Tested, with self-extinguishing material at: 850 °C
  • European WEEE directive: Applicable
  • Safety
  • Impact resistance IK: IK09
  • Protection degree IP: IP30
  • Protection class: Class II insulation
  • Halogen free: no

Manufacturer

Manufacturer Details

Warnings & Safety Information
Product Number
FWU52S

Specifications

Placement
Walled
Material
Metallic
Number of Rows
5
Number of Elements per Row
24
Colour
White
Protection Certification
IP30

Attributes

with Fuses
No
Waterproof
No
Cabinet
No

Dimensions

Width
550 mm
Height
800 mm
Installation Depth
112 mm
