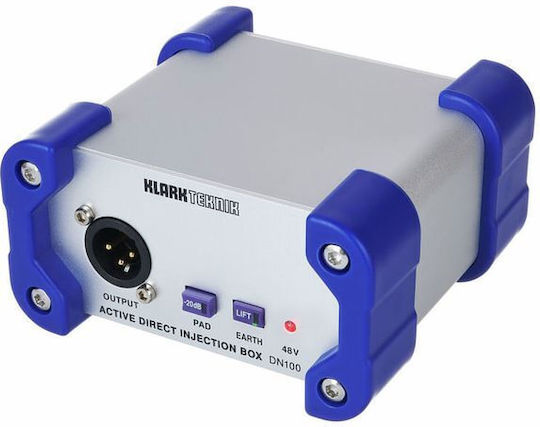

The Klark Teknik DN100 V2 is a single-channel active direct injection (DI) unit, designed for professional audio applications. This unit is essential for sound engineers working live on stage or in the studio, especially where +48V phantom power is a standard feature on all mixers.

• High Headroom and Dynamic Range: The DN100 V2 features an innovative design that significantly increases the headroom compared to traditional active DIs, providing +10 dBu output into a 2 kΩ load, ensuring impressive dynamic range without distortion.
• Advanced Input Circuitry: With instrument-level input circuits, the unit can handle passive guitar and bass signals while maintaining low noise levels.
• Illuminated Controls: It includes illuminated controls for the 30 dB pad, ground lift switches, and +48V phantom power LED indicator for easy monitoring from a distance.
• Galvanic Isolation: Complete galvanic isolation is achieved through the ground lift switch, preventing ground loops for clean sound.

• Dimensions: 119.4 mm (width) x 112.0 mm (depth) x 63.5 mm (height)
• Weight: 0.44 kg
• Power Source: +48V phantom power, operates with voltages up to +20V

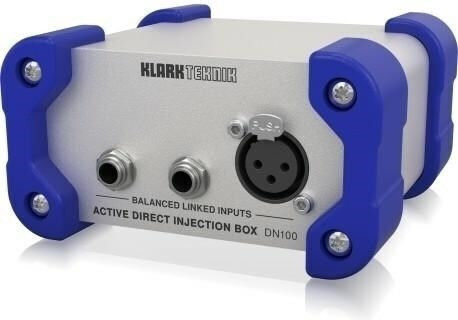

• Inputs and Outputs: Two 6.3 mm jack inputs and one 3-pin XLR input, with one 3-pin XLR output
• Frequency Range: 20 Hz to 20 kHz
• Noise Level: -100 dBu unweighted
• Distortion: Less than 0.01% THD+N at 1 kHz with an input level of +4 dBu
