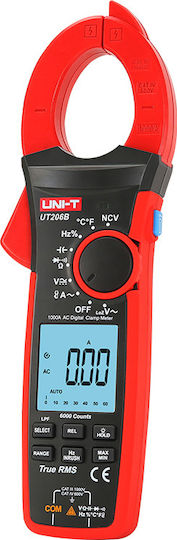

Uni-T Clamp Meter Digital 1000A AC True RMS with Test Leads AC/DC, NCV UT206B
Clamp Meters

Uni-T Clamp Meter Digital 1000A AC True RMS with Test Leads AC/DC, NCV UT206B

The UT200 series are digital multimeters & clamp meters with a maximum measurement count of 6000 digits, featuring autonomy, large LCD screen, True RMS, automatic memory, and NCV functions. They...

The UT200 series are digital multimeters & clamp meters with a maximum measurement count of 6000 digits, featuring autonomy, large LCD screen, True RMS, automatic memory, and NCV functions. They comply with CAT III 1000V/CAT IV 600V safety standards and are certified by CE/ETL. The UT206B includes a LoZ function for eliminating "ghost" voltage, LPF ACV...

See full description See full description
73 94 €
Delivery Fri, 26 Jun - Tue, 30 Jun
14,00 €   shipping cost
Sent from Greece
From Shop404
Greece
10 pieces
See Multimeters on the page of Shop404
Product report

Description

Description

The UT200 series are digital multimeters & clamp meters with a maximum measurement count of 6000 digits, featuring autonomy, large LCD screen, True RMS, automatic memory, and NCV functions. They comply with CAT III 1000V/CAT IV 600V safety standards and are certified by CE/ETL. The UT206B includes a LoZ function for eliminating "ghost" voltage, LPF ACV function for measuring INV and VFD voltage, and inrush current function for capturing transient current. Additionally, it offers high-precision temperature measurement with 0.1°C resolution and can be equipped with a current sensor extending the AC current measurement range to 3000A. It is compatible with the UT-CS09D current sensor.

Functions:

  • With flashlight button
  • Input current capture
  • NCV Multi-Segment Display and audible/visual alarm
  • True RMS/Auto backlight
  • NCV/Function retention
  • Capability to extend AC current measurement range to 3000A with current sensor

Specifications

  • AC current(A): 1000A ±(2%+5)
  • AC current frequency response: 50Hz~60Hz
  • Inrush current (A): 1000A ±(10%+10)
  • AC voltage(V): 6V ±(1.2%+3), 60V/600V/1000V ±(1%+8)
  • DC voltage(V): 600mV ±(0.8%+3), 6V/60V ±(0.5%+5), 600V ±(0.5%+5), 1000V ±(0.5%+5)
  • Low pas filter(LPF ACV): 600V/1000V ±(2%+5)
  • AC voltage frequency response: 40Hz~400Hz
  • LoZ ACV: 600V/1000V ±(2%+5)
  • Resistance(Ω): 600Ω ±(1%+3), 6KΩ/60KΩ/600KΩ ±(1%+2), 6MΩ/60MΩ ±(2%+8)
  • Capacitance(F): 60nF ±(4%+25), 600nF/6μF/60μF/600μF ±(4%+5), 6mF/60mF ±(10%+9)
  • Temperature(°C): -40°C~300°C ±(1%+20), 300°C~1000°C ±(1%+2)
  • Low voltage frequency(Hz): 10Hz~1MHz ±(0.1%+3)
  • Duty cycle(%): 10%~90% ±(2.6%+7)
  • Display count: 6000
  • Jaw opening: 42mm
  • Current frequency: 50Hz~60Hz
  • High voltage frequency: 40Hz~400Hz
  • Analog bar: 31
  • Auto power off: Yes
  • Continuity test: Yes
  • Auto/Manual range: Yes
  • Low battery indication: Yes
  • Diode test: Yes
  • Relative mode/Data hold: Yes
  • MAX/MIN: Yes
  • Function selection: Yes
  • Flashlight: Yes
  • Wake-up function: Yes
  • Auto power of current: <50μA
  • Flexible current probe(optional): Extends to 3000A
  • Input impedance(ACV/DCV): 10MΩ
  • Power: 3x 1.5V battery (R03)
  • Display: 43 x 45mm
  • Color: Red-Grey
  • Weight: 465g
  • Dimensions: 272 x 81 x 43.5mm

Package contents

  • Multimeter & clamp meter UT206B
  • Carrying case
  • Terminals
  • 3x R03 1.5V batteries
  • User manual

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

True RMS
Yes

True RMS


The True-RMS method will provide the correct value of the alternating quantity regardless of its waveform.
with Test Leads
Yes

with Test Leads


It has measurement terminals that have a red wire for positive and a black wire for negative.
AC Current
1000 A
Indication
Digital
Bluetooth
No
Safety Category
CAT III

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Reviews (3)

Reviews

5.0
3
5.0
Review this product
  1. 3
  2. 4 stars
    0
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product
