Maxge MAXGE EPI-R 1-Pole General Use Panel Push Button Switch 400V 63A
Electrical Panel Push Buttons Switches

Maxge MAXGE EPI-R 1-Pole General Use Panel Push Button Switch 400V 63A

Rail switch, single pole (1P)

  • Specifications: EN/IEC 60947-3
  • Protection: Overload and short circuits

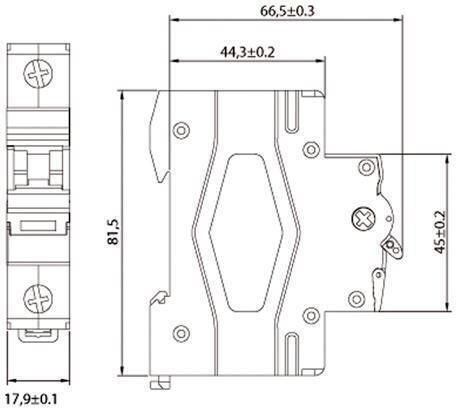

  • Width: 17.8mm per pole
  • Mounting: 35mm DIN rail
  • Number of poles: 1P
  • Rated current: 63A
  • Rated...

Rail switch, single pole (1P)

  • Specifications: EN/IEC 60947-3
  • Protection: Overload and short circuits
  • Width: 17.8mm per pole
  • Mounting: 35mm DIN rail
  • Number of poles: 1P
  • Rated current: 63A
  • Rated voltage: 240VAC, 50/60Hz
  • Rated insulation voltage: 690V
  • Rated impulse withstand voltage: 6000V
  • Terminal capacity: up to 50mm²
  • Endurance: Electrical: 1500 operations,...
See full description See full description
Review the product
Product report

Description

Description

Rail switch, single pole (1P)

  • Specifications: EN/IEC 60947-3
  • Protection: Overload and short circuits
  • Width: 17.8mm per pole
  • Mounting: 35mm DIN rail
  • Number of poles: 1P
  • Rated current: 63A
  • Rated voltage: 240VAC, 50/60Hz
  • Rated insulation voltage: 690V
  • Rated impulse withstand voltage: 6000V
  • Terminal capacity: up to 50mm²
  • Endurance: Electrical: 1500 operations, Mechanical: 10000 operations

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Panel Switches Type
General Use
Number of Poles
1
Nominal Voltage
400 V
Rated Voltage
63 A

Features & Functions

WiFi
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Rail switch, single pole (1P)

  • Specifications: EN/IEC 60947-3
  • Protection: Overload and short circuits
  • Width: 17.8mm per pole
  • Mounting: 35mm DIN rail
  • Number of poles: 1P
  • Rated current: 63A
  • Rated voltage: 240VAC, 50/60Hz
  • Rated insulation voltage: 690V
  • Rated impulse withstand voltage: 6000V
  • Terminal capacity: up to 50mm²
  • Endurance: Electrical: 1500 operations, Mechanical: 10000 operations

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Panel Switches Type
General Use
Number of Poles
1
Nominal Voltage
400 V
Rated Voltage
63 A

Features & Functions

WiFi
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

12,18 €
14,00 €   shipping cost
