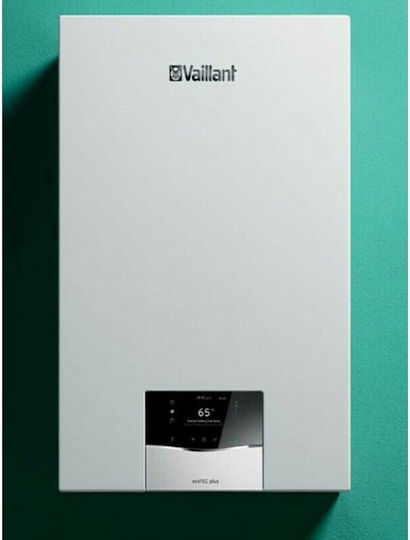

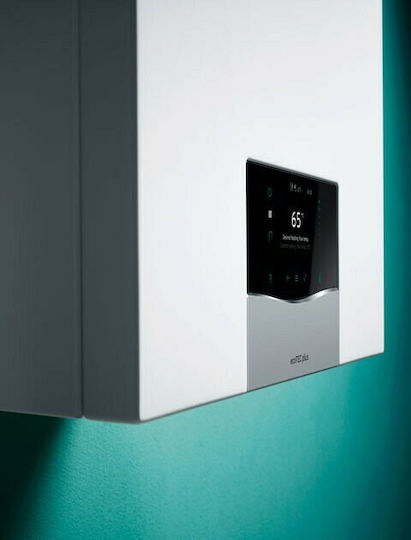

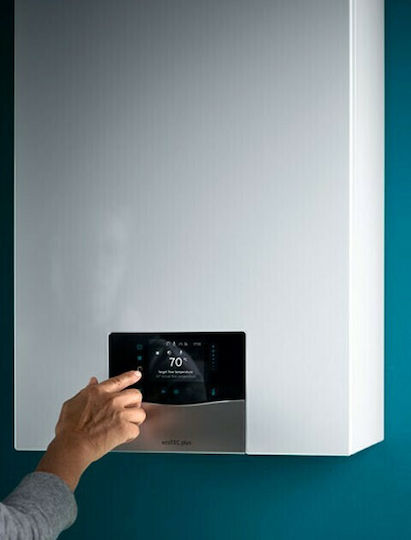

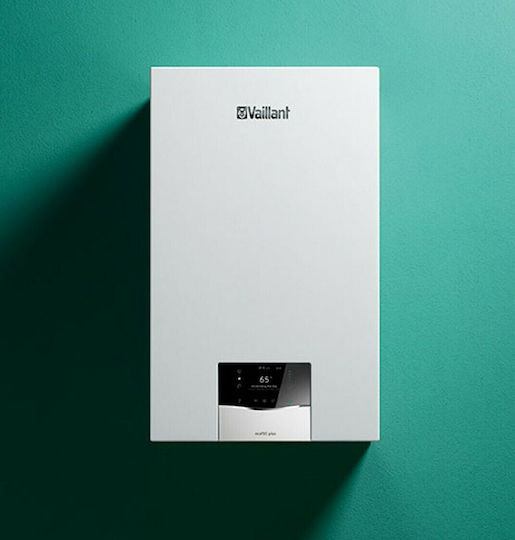

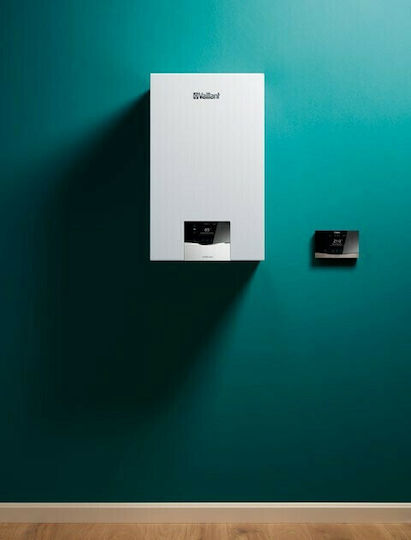

Vaillant EcoTEC Plus VU 15 CS Wall-mounted Boiler Condensation Gas with Burner 14101kcal/h

Technical characteristics ecoTEC plus

  • VU 10 CS
    • Energy efficiency of space heating: A
    • Seasonal space heating energy efficiency ηS %: 92
    • Nominal thermal power Prated kW: 10
    • Nominal heating output at...

Technical characteristics ecoTEC plus

  • VU 10 CS
    • Energy efficiency of space heating: A
    • Seasonal space heating energy efficiency ηS %: 92
    • Nominal thermal power Prated kW: 10
    • Nominal heating output at 80/60°C kW: 2.5-9.9
    • Nominal heating output at 50/30°C kW: 2.8-10.9
    • NOx category: 6
    • Heating Water temperature range °C: 30 - 80
    • Maximum operating pressure bar: 3...
See full description See full description

Description

Description

Technical characteristics ecoTEC plus

  • VU 10 CS
    • Energy efficiency of space heating: A
    • Seasonal space heating energy efficiency ηS %: 92
    • Nominal thermal power Prated kW: 10
    • Nominal heating output at 80/60°C kW: 2.5-9.9
    • Nominal heating output at 50/30°C kW: 2.8-10.9
    • NOx category: 6
    • Heating Water temperature range °C: 30 - 80
    • Maximum operating pressure bar: 3
    • Heating circuit flow rate ΔΤ=20Κ lt/h: 424
    • Condensate water volume lt/h: 1.4
    • Expansion vessel size lt: 10
    • Gas connection mm: 15
    • Heating connections inch: 3/4''
    • Flue connection mm: 60/100 concentric (optional 80/125 concentric)
    • Dimensions (H/W/D) mm: 720/440/348
    • Weight kg: 34
    • Electrical connection: 230 V / 50 Hz
    • Dust / water protection: IP X4
  • VU 15 CS
    • Energy efficiency of space heating: A
    • Seasonal space heating energy efficiency ηS %: 93
    • Nominal thermal power Prated kW: 15
    • Nominal heating output at 80/60°C kW: 2.5 - 14.8
    • Nominal heating output at 50/30°C kW: 2.8 - 16.4
    • NOx category: 6
    • Heating Water temperature range °C: 30 - 80
    • Maximum operating pressure bar: 3
    • Heating circuit flow rate ΔΤ=20Κ lt/h: 636
    • Condensate water volume lt/h: 2.0
    • Expansion vessel size lt: 10
    • Gas connection mm: 15
    • Heating connections inch: 3/4''
    • Flue connection mm: 60/100 concentric (optional 80/125 concentric)
    • Dimensions (H/W/D) mm: 720/440/382
    • Weight kg: 40.5
    • Electrical connection: 230 V / 50 Hz
    • Dust / water protection: IP X4
  • VU 25 CS
    • Energy efficiency of space heating: A
    • Seasonal space heating energy efficiency ηS %: 94
    • Nominal thermal power Prated kW: 25
    • Nominal heating output at 80/60°C kW: 2.5 - 24.7
    • Nominal heating output at 50/30°C kW: 2.8 - 26.4
    • NOx category: 6
    • Heating Water temperature range °C: 30 - 80
    • Maximum operating pressure bar: 3
    • Heating circuit flow rate ΔΤ=20Κ lt/h: 1060
    • Condensate water volume lt/h: 3.6
    • Expansion vessel size lt: 10
    • Gas connection mm: 15
    • Heating connections inch: 3/4''
    • Flue connection mm: 60/100 concentric (optional 80/125 concentric)
    • Dimensions (H/W/D) mm: 720/440/348
    • Weight kg: 34
    • Electrical connection: 230 V / 50 Hz
    • Dust / water protection: IP X4
  • VU 35 CS
    • Energy efficiency of space heating: A
    • Seasonal space heating energy efficiency ηS %: 94
    • Nominal thermal power Prated kW: 35
    • Nominal heating output at 80/60°C kW: 4.0 - 34.8
    • Nominal heating output at 50/30°C kW: 4.3 - 37.7
    • NOx category: 6
    • Heating Water temperature range °C: 30 - 80
    • Maximum operating pressure bar: 3
    • Heating circuit flow rate ΔΤ=20Κ lt/h: 1498
    • Condensate water volume lt/h: 3.6
    • Expansion vessel size lt: 10
    • Gas connection mm: 15
    • Heating connections inch: 3/4''
    • Flue connection mm: 60/100 concentric (optional 80/125 concentric)
    • Dimensions (H/W/D) mm: 720/440/348
    • Weight kg: 34
    • Electrical connection: 230 V / 50 Hz
    • Dust / water protection: IP X4

Manufacturer

See full description

Specifications

Specifications

Dimensions

Nominal Power Output Rate
14101 kcal/h
Placement
Wall Mounted
Material
Stainless
Individual Unit
No
Condensation
Yes
Pyrolysis
No
Air Duct Boiler
No
with Burner
Yes

Provision

Petroleum
No
Gas
Yes
Of Wood
No
Pellet
No
Electric Current
No
Biomass
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Technical characteristics ecoTEC plus

  • VU 10 CS
    • Energy efficiency of space heating: A
    • Seasonal space heating energy efficiency ηS %: 92
    • Nominal thermal power Prated kW: 10
    • Nominal heating output at 80/60°C kW: 2.5-9.9
    • Nominal heating output at 50/30°C kW: 2.8-10.9
    • NOx category: 6
    • Heating Water temperature range °C: 30 - 80
    • Maximum operating pressure bar: 3
    • Heating circuit flow rate ΔΤ=20Κ lt/h: 424
    • Condensate water volume lt/h: 1.4
    • Expansion vessel size lt: 10
    • Gas connection mm: 15
    • Heating connections inch: 3/4''
    • Flue connection mm: 60/100 concentric (optional 80/125 concentric)
    • Dimensions (H/W/D) mm: 720/440/348
    • Weight kg: 34
    • Electrical connection: 230 V / 50 Hz
    • Dust / water protection: IP X4
  • VU 15 CS
    • Energy efficiency of space heating: A
    • Seasonal space heating energy efficiency ηS %: 93
    • Nominal thermal power Prated kW: 15
    • Nominal heating output at 80/60°C kW: 2.5 - 14.8
    • Nominal heating output at 50/30°C kW: 2.8 - 16.4
    • NOx category: 6
    • Heating Water temperature range °C: 30 - 80
    • Maximum operating pressure bar: 3
    • Heating circuit flow rate ΔΤ=20Κ lt/h: 636
    • Condensate water volume lt/h: 2.0
    • Expansion vessel size lt: 10
    • Gas connection mm: 15
    • Heating connections inch: 3/4''
    • Flue connection mm: 60/100 concentric (optional 80/125 concentric)
    • Dimensions (H/W/D) mm: 720/440/382
    • Weight kg: 40.5
    • Electrical connection: 230 V / 50 Hz
    • Dust / water protection: IP X4
  • VU 25 CS
    • Energy efficiency of space heating: A
    • Seasonal space heating energy efficiency ηS %: 94
    • Nominal thermal power Prated kW: 25
    • Nominal heating output at 80/60°C kW: 2.5 - 24.7
    • Nominal heating output at 50/30°C kW: 2.8 - 26.4
    • NOx category: 6
    • Heating Water temperature range °C: 30 - 80
    • Maximum operating pressure bar: 3
    • Heating circuit flow rate ΔΤ=20Κ lt/h: 1060
    • Condensate water volume lt/h: 3.6
    • Expansion vessel size lt: 10
    • Gas connection mm: 15
    • Heating connections inch: 3/4''
    • Flue connection mm: 60/100 concentric (optional 80/125 concentric)
    • Dimensions (H/W/D) mm: 720/440/348
    • Weight kg: 34
    • Electrical connection: 230 V / 50 Hz
    • Dust / water protection: IP X4
  • VU 35 CS
    • Energy efficiency of space heating: A
    • Seasonal space heating energy efficiency ηS %: 94
    • Nominal thermal power Prated kW: 35
    • Nominal heating output at 80/60°C kW: 4.0 - 34.8
    • Nominal heating output at 50/30°C kW: 4.3 - 37.7
    • NOx category: 6
    • Heating Water temperature range °C: 30 - 80
    • Maximum operating pressure bar: 3
    • Heating circuit flow rate ΔΤ=20Κ lt/h: 1498
    • Condensate water volume lt/h: 3.6
    • Expansion vessel size lt: 10
    • Gas connection mm: 15
    • Heating connections inch: 3/4''
    • Flue connection mm: 60/100 concentric (optional 80/125 concentric)
    • Dimensions (H/W/D) mm: 720/440/348
    • Weight kg: 34
    • Electrical connection: 230 V / 50 Hz
    • Dust / water protection: IP X4

Manufacturer

Dimensions

Nominal Power Output Rate
14101 kcal/h
Placement
Wall Mounted
Material
Stainless
Individual Unit
No
Condensation
Yes
Pyrolysis
No
Air Duct Boiler
No
with Burner
Yes

Provision

Petroleum
No
Gas
Yes
Of Wood
No
Pellet
No
Electric Current
No
Biomass
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
