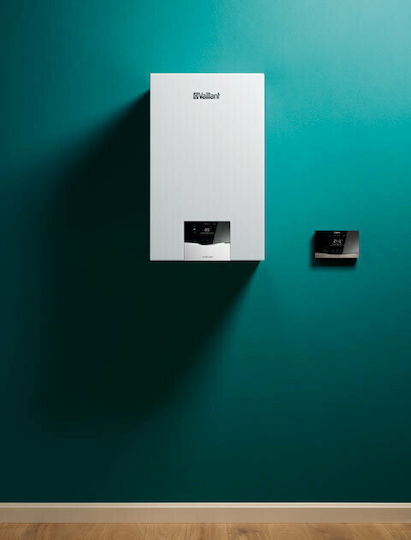

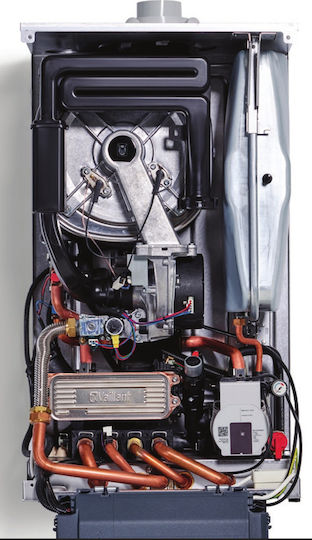

Vaillant EcoTEC Plus VU 10 CS Wall-mounted Boiler Condensation Gas with Burner 9372kcal/h
Boilers

Vaillant EcoTEC Plus VU 10 CS Wall-mounted Boiler Condensation Gas with Burner 9372kcal/h

Technical characteristics:

  • ecoTEC plus VUW 26
  • ecoTEC plus VUW 32
  • ecoTEC plus VUW 36
  • ecoTEC plus VUW 40

Space heating energy efficiency: A

Seasonal space heating energy efficiency ηS %: 94

Nominal...

Technical characteristics:

  • ecoTEC plus VUW 26
  • ecoTEC plus VUW 32
  • ecoTEC plus VUW 36
  • ecoTEC plus VUW 40

Space heating energy efficiency: A

Seasonal space heating energy efficiency ηS %: 94

Nominal thermal power Prated kW:

  • 20
  • 25
  • 30
  • 35

Domestic hot water load profile / Domestic hot water energy efficiency: XL / A

Nominal heating output at 80/60°C kW:

  • 2.4 -...
See full description See full description
Review the product
Product report

Description

Description

Technical characteristics:

  • ecoTEC plus VUW 26
  • ecoTEC plus VUW 32
  • ecoTEC plus VUW 36
  • ecoTEC plus VUW 40

Space heating energy efficiency: A

Seasonal space heating energy efficiency ηS %: 94

Nominal thermal power Prated kW:

  • 20
  • 25
  • 30
  • 35

Domestic hot water load profile / Domestic hot water energy efficiency: XL / A

Nominal heating output at 80/60°C kW:

  • 2.4 - 19.7
  • 3.4 - 25.0
  • 3.5 - 29.9
  • 4 - 34.8

Nominal heating output at 50/30°C kW:

  • 2.7 - 21.0
  • 3.9 - 27.0
  • 3.9 - 33.3
  • 4.3 - 37.7

Domestic hot water output kW:

  • 26
  • 31.8
  • 35.6
  • 39.7

Heating:

Heating water temperature range °C: 30 - 80

Maximum heating circuit pressure bar: 3

Heating water flow rate (ΔT=20K) with 2.5m water column l/h:

  • 846
  • 1070
  • 1283
  • 1498

Hot water:

Minimum domestic water flow rate l/min: 2

Hot water flow rate (ΔT=30K) l/min:

  • 12.4
  • 15.1
  • 17.0
  • 19.4

Maximum allowable domestic water circuit pressure bar: 10

Required minimum pressure bar: 0.30

Domestic water temperature range °C: 35 - 65

General information:

Gas connection mm: 15

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

Nominal Power Output Rate
9372 kcal/h
Placement
Wall Mounted
Material
Stainless
Individual Unit
No

Individual Unit

Compact boiler room system.
Condensation
Yes

Condensation

They also utilize the temperature of their exhaust gases, thus greatly increasing their efficiency and achieving greater fuel economy.
Pyrolysis
No

Pyrolysis

They maximize the use of solid fuels, increasing their efficiency while reducing waste.
Air Duct Boiler
No
with Burner
Yes

Provision

Petroleum
No
Gas
Yes
Of Wood
No
Pellet
No
Electric Current
No
Biomass
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Technical characteristics:

  • ecoTEC plus VUW 26
  • ecoTEC plus VUW 32
  • ecoTEC plus VUW 36
  • ecoTEC plus VUW 40

Space heating energy efficiency: A

Seasonal space heating energy efficiency ηS %: 94

Nominal thermal power Prated kW:

  • 20
  • 25
  • 30
  • 35

Domestic hot water load profile / Domestic hot water energy efficiency: XL / A

Nominal heating output at 80/60°C kW:

  • 2.4 - 19.7
  • 3.4 - 25.0
  • 3.5 - 29.9
  • 4 - 34.8

Nominal heating output at 50/30°C kW:

  • 2.7 - 21.0
  • 3.9 - 27.0
  • 3.9 - 33.3
  • 4.3 - 37.7

Domestic hot water output kW:

  • 26
  • 31.8
  • 35.6
  • 39.7

Heating:

Heating water temperature range °C: 30 - 80

Maximum heating circuit pressure bar: 3

Heating water flow rate (ΔT=20K) with 2.5m water column l/h:

  • 846
  • 1070
  • 1283
  • 1498

Hot water:

Minimum domestic water flow rate l/min: 2

Hot water flow rate (ΔT=30K) l/min:

  • 12.4
  • 15.1
  • 17.0
  • 19.4

Maximum allowable domestic water circuit pressure bar: 10

Required minimum pressure bar: 0.30

Domestic water temperature range °C: 35 - 65

General information:

Gas connection mm: 15

Manufacturer

Manufacturer Details

Warnings & Safety Information

Dimensions

Nominal Power Output Rate
9372 kcal/h
Placement
Wall Mounted
Material
Stainless
Individual Unit
No

Individual Unit

Compact boiler room system.
Condensation
Yes

Condensation

They also utilize the temperature of their exhaust gases, thus greatly increasing their efficiency and achieving greater fuel economy.
Pyrolysis
No

Pyrolysis

They maximize the use of solid fuels, increasing their efficiency while reducing waste.
Air Duct Boiler
No
with Burner
Yes

Provision

Petroleum
No
Gas
Yes
Of Wood
No
Pellet
No
Electric Current
No
Biomass
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
