Features

• Material: expanded polystyrene (PS), polycarbonate (PC)
• 18 elements per row
• 1 to 4 rows, up to 72 elements
• Nominal current
  • 1 and 2 rows: 90A
  • 3 and 4 rows: 125A
• Depth: 146mm
• Width: 400mm
• Height: 325-775mm
• Protection degree IP40 (with door)
• Impact resistance IK07
• Insulation class II
• Wall-mounted installation with 360° rotatable supports
• Adjustable DIN rail height
• Cable entry from pre-cut openings in the box or cable entry plates
• Large wiring space on the side
• Vertical or horizontal cabinet connection

Standards: EN 60670-24 and EN 61439-3

Self-extinguishing material at 650°C according to IEC EN 60 695-2-10 and IEC 60 695-2-11

External panels with 18 elements up to 125A:

• The new Vega 18 panel range features characteristics that facilitate installation
• Offers a large wiring space for easier and safer cable connections and passages
• Updated handle in silver color
• The panels comply with IEC/EN 60670-24 and IEC/EN 61439-3 standards

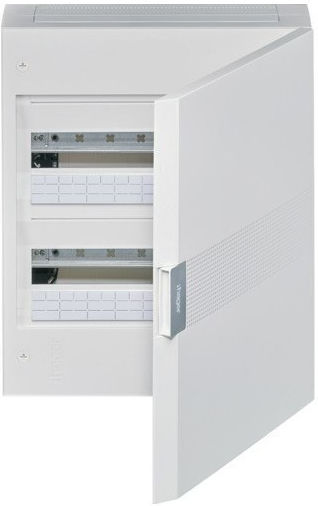

External panel with opaque door with 18 elements per row. Vega 18 by Hager. Available with:

• 1 row with 18 elements (W400 x H325 x D146 mm)
• 2 rows with 36 elements (W400 x H475 x D146 mm)
• 3 rows with 54 elements (W400 x H625 x D146 mm)
• 4 rows with 72 elements (W400 x H775 x D146 mm)
