Ajax Systems MotionCam Outdoor PET Wireless Infrared Motion Sensor 105° Detection Angle 15m Scope with Antimasking
Motion Sensors

Ajax Systems MotionCam Outdoor PET Wireless Infrared Motion Sensor 105° Detection Angle 15m Scope with Antimasking

Key features:

  • Type: Motion
  • Built-in Camera
  • Pet Immunity
  • Battery Powered
See full description

  • Login

    Wireless

    It connects wirelessly via a wireless communication protocol to the installation system. It is powered by a battery.

  • Battery

    Powered by battery.

  • Detection Type

    Infrared

    Detects motion by sensing changes in infrared radiation (heat) emitted by humans or animals.

  • Range

    The range refers to the maximum distance in meters within which it can detect motion.

  • Detection Angle

    The width of the area that a sensor can cover to detect motion. The more degrees, the larger the coverage field.

  • Protection Certification

    IP55

    Suitable for outdoor areas with light rain. Provides limited protection against dust and withstands light rain or water splashes, ideal for patios or under shelters.

  • Antimasking

    Function that detects any malicious interference, covering or blocking of the lens and automatically activates the alarm.

    1

  • PET

    Motion sensors with this technology are designed to "ignore" the movement of small animals, such as dogs and cats, thus preventing false alarms.

    1
  • See all
Review the product
Product report

Description

Description

Advanced Wireless Motion Detector

The MotionCam Outdoor Jeweller is an advanced wireless outdoor motion detector equipped with a camera for photographic alarm verification. It detects intrusion from the first steps and confirms it with a series of photos, reducing false alarms for users and unnecessary patrols by security companies.

With 2 Independent PIR Sensors

The device features two independent PIR sensors with signal processing through the LISA algorithm, which performs correlation and spectrum analysis to distinguish real threats from interference. The MotionCam Outdoor detects pets up to 80 cm in height and can detect motion at a distance of 3–15 meters, with a horizontal field of view of 90° and a movement speed of 0.3–2.0 m/s.

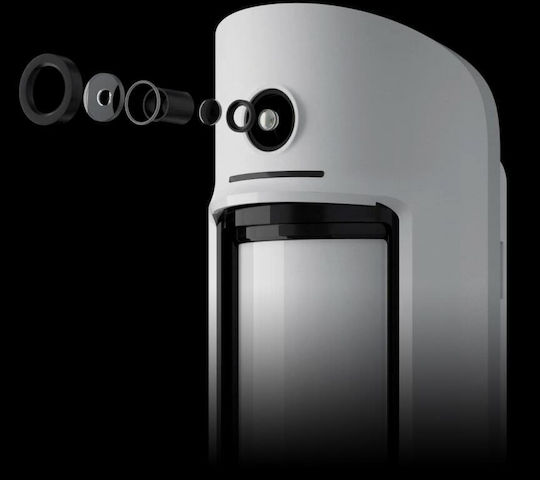

Camera for Photographic Confirmation

The device's camera provides photographic confirmation with a resolution of up to 640 x 352 px, featuring a horizontal field of view of 105° and a vertical field of 50°, and IR backlight for shooting in low light or at night. Photos can be taken by alarm, scenario, schedule, during arming/disarming, or upon user request, with a delivery time of 9–20 seconds depending on the resolution.

Multi-level Tamper Protection

The MotionCam Outdoor features multi-level sabotage protection, including an anti-masking system and alerts for detachment or removal of the detector. Communication is carried out through the secure Jeweller and Wings protocols, with dual transmission methods, encryption, and frequency hopping, ensuring reliable transmission even with weak signals or communication interruptions.

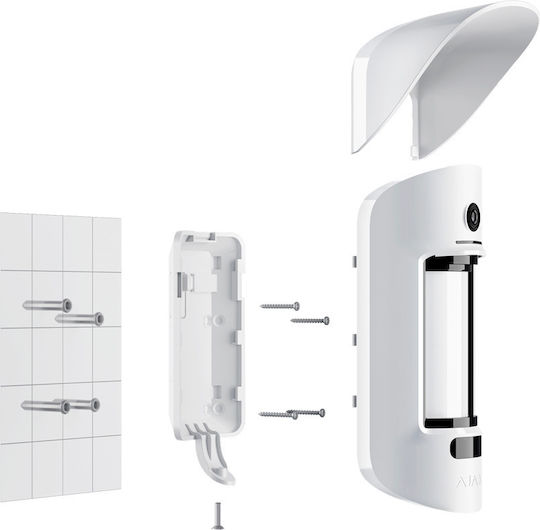

Easy installation

The installation is quick and easy via a QR code in the Ajax app, where the device can be configured in real time and the detection zones and communication can be checked. It is powered by 4 pre-installed CR123A batteries, with a lifespan of up to 3 years, while the IP55 enclosure provides protection against water and dust, and the device operates at temperatures from −25°C to +60°C.

Features

  • Supports Jeweller and Wings communication
  • Two PIR sensors
  • Motion detection 3–15 m
  • Horizontal field 90°
  • Camera resolution up to 640 × 352 px
  • Camera horizontal field 105°
  • Camera vertical field 50°
  • IR backlight for night shooting
  • Photo series 1–5 per alarm
  • Photo delivery time 9–20 seconds
  • Three sensitivity levels
  • Pet immunity up to 80 cm
  • Resolution and photos adjustable via app
  • Anti-masking and tampering alarm
  • Notifications for communication loss
  • Device authentication
  • Powered by 4 × CR123A, pre-installed
  • Battery life up to 3 years
  • Operating voltage 3.8–6.2 V, nominal 6 V
  • Quiescent current 23 μA, maximum 906 mA
  • Battery capacity 3,200 mAh
  • Low battery voltage 4.65 V
  • Low voltage recovery 5 V
  • End-of-life battery voltage 3.8 V
  • End-of-life capacity 500 mAh
  • Manufacturer Huiderui or Panasonic
  • Dimensions 206 × 108 × 93 mm
  • Weight 470 g
  • Operating temperature −25°C to +60°C
  • Humidity up to 95%
  • Protection IP55

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Detection Type
Infrared

Detection Type

Infrared

Detects motion by sensing changes in infrared radiation (heat) emitted by humans or animals.
Detection Angle
105 °

Detection Angle

The width of the area that a sensor can cover to detect motion. The more degrees, the larger the coverage field.
Protection Certification
IP55

Protection Certification

IP55

Suitable for outdoor areas with light rain. Provides limited protection against dust and withstands light rain or water splashes, ideal for patios or under shelters.
Scope
15 m

Scope

The range refers to the maximum distance in meters within which it can detect motion.
Connector
Wireless

Connector

Wireless

It connects wirelessly via a wireless communication protocol to the installation system. It is powered by a battery.
Battery
Yes

Battery

Powered by battery.

Additional Features

Antimasking
Yes

Antimasking

Function that detects any malicious interference, covering or blocking of the lens and automatically activates the alarm.
Tamper
Yes

Tamper

Refers to protection against attempts to tamper with the device. For example, if someone tries to open the sensor's casing or remove it from its position, the sensor will send an alarm signal.
Curtain
No

Curtain

With a narrow detection angle that allows monitoring of a specific area (windows, doors, narrow passages) and prevents false alarms from surrounding movement.
Placement
Wall
Recessed
No
PET
Yes

PET

Motion sensors with this technology are designed to "ignore" the movement of small animals, such as dogs and cats, thus preventing false alarms.
Built-in Camera
Yes

Smart Attributes

Connectivity
-

Connectivity

Refers to the wireless communication protocol used by the sensor to connect with other alarm systems or devices.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Advanced Wireless Motion Detector

The MotionCam Outdoor Jeweller is an advanced wireless outdoor motion detector equipped with a camera for photographic alarm verification. It detects intrusion from the first steps and confirms it with a series of photos, reducing false alarms for users and unnecessary patrols by security companies.

With 2 Independent PIR Sensors

The device features two independent PIR sensors with signal processing through the LISA algorithm, which performs correlation and spectrum analysis to distinguish real threats from interference. The MotionCam Outdoor detects pets up to 80 cm in height and can detect motion at a distance of 3–15 meters, with a horizontal field of view of 90° and a movement speed of 0.3–2.0 m/s.

Camera for Photographic Confirmation

The device's camera provides photographic confirmation with a resolution of up to 640 x 352 px, featuring a horizontal field of view of 105° and a vertical field of 50°, and IR backlight for shooting in low light or at night. Photos can be taken by alarm, scenario, schedule, during arming/disarming, or upon user request, with a delivery time of 9–20 seconds depending on the resolution.

Multi-level Tamper Protection

The MotionCam Outdoor features multi-level sabotage protection, including an anti-masking system and alerts for detachment or removal of the detector. Communication is carried out through the secure Jeweller and Wings protocols, with dual transmission methods, encryption, and frequency hopping, ensuring reliable transmission even with weak signals or communication interruptions.

Easy installation

The installation is quick and easy via a QR code in the Ajax app, where the device can be configured in real time and the detection zones and communication can be checked. It is powered by 4 pre-installed CR123A batteries, with a lifespan of up to 3 years, while the IP55 enclosure provides protection against water and dust, and the device operates at temperatures from −25°C to +60°C.

Features

  • Supports Jeweller and Wings communication
  • Two PIR sensors
  • Motion detection 3–15 m
  • Horizontal field 90°
  • Camera resolution up to 640 × 352 px
  • Camera horizontal field 105°
  • Camera vertical field 50°
  • IR backlight for night shooting
  • Photo series 1–5 per alarm
  • Photo delivery time 9–20 seconds
  • Three sensitivity levels
  • Pet immunity up to 80 cm
  • Resolution and photos adjustable via app
  • Anti-masking and tampering alarm
  • Notifications for communication loss
  • Device authentication
  • Powered by 4 × CR123A, pre-installed
  • Battery life up to 3 years
  • Operating voltage 3.8–6.2 V, nominal 6 V
  • Quiescent current 23 μA, maximum 906 mA
  • Battery capacity 3,200 mAh
  • Low battery voltage 4.65 V
  • Low voltage recovery 5 V
  • End-of-life battery voltage 3.8 V
  • End-of-life capacity 500 mAh
  • Manufacturer Huiderui or Panasonic
  • Dimensions 206 × 108 × 93 mm
  • Weight 470 g
  • Operating temperature −25°C to +60°C
  • Humidity up to 95%
  • Protection IP55

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Detection Type
Infrared

Detection Type

Infrared

Detects motion by sensing changes in infrared radiation (heat) emitted by humans or animals.
Detection Angle
105 °

Detection Angle

The width of the area that a sensor can cover to detect motion. The more degrees, the larger the coverage field.
Protection Certification
IP55

Protection Certification

IP55

Suitable for outdoor areas with light rain. Provides limited protection against dust and withstands light rain or water splashes, ideal for patios or under shelters.
Scope
15 m

Scope

The range refers to the maximum distance in meters within which it can detect motion.
Connector
Wireless

Connector

Wireless

It connects wirelessly via a wireless communication protocol to the installation system. It is powered by a battery.
Battery
Yes

Battery

Powered by battery.

Additional Features

Antimasking
Yes

Antimasking

Function that detects any malicious interference, covering or blocking of the lens and automatically activates the alarm.
Tamper
Yes

Tamper

Refers to protection against attempts to tamper with the device. For example, if someone tries to open the sensor's casing or remove it from its position, the sensor will send an alarm signal.
Curtain
No

Curtain

With a narrow detection angle that allows monitoring of a specific area (windows, doors, narrow passages) and prevents false alarms from surrounding movement.
Placement
Wall
Recessed
No
PET
Yes

PET

Motion sensors with this technology are designed to "ignore" the movement of small animals, such as dogs and cats, thus preventing false alarms.
Built-in Camera
Yes

Smart Attributes

Connectivity
-

Connectivity

Refers to the wireless communication protocol used by the sensor to connect with other alarm systems or devices.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
