For reliable power and excellent electrical performance, each power supply in the RMx series features LLC resonant topology with DC-DC conversion and 100% Japanese 105°C rated electrolytic capacitors. With precise timings, the RMx supports Microsoft Modern Standby, ensuring ultra-fast wake-up times from sleep and better performance at low load.
Reliable Operation
For reliable power and excellent electrical performance, each power supply in the RMx series features LLC resonant topology with DC-DC conversion and 100% Japanese 105°C rated electrolytic capacitors. With precise timings, the RMx supports Microsoft Modern Standby, ensuring ultra-fast wake-up times from sleep and better performance at low load.
80 PLUS Gold
It has the 80 PLUS Gold certification, which means it offers clean power that reaches 85% of its total efficiency.
The highly efficient operation of the series leads to lower energy consumption and lower operating costs. Since it produces less heat, the fan does not need to work as hard, and you will enjoy almost silent operation.

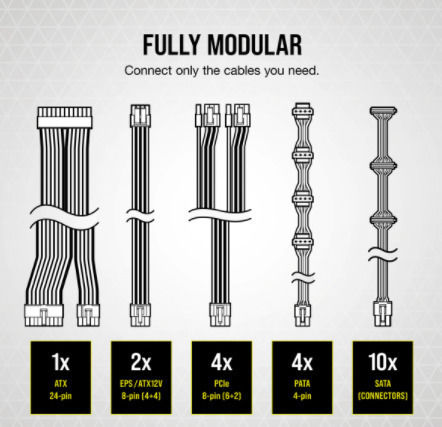

Fully Modular Wiring
The flat black cables are fully detachable, so you will only use the cables you need. The connection indicators make installation quick and simple.
ZERO RPM Fan Operation
At low and medium loads, the cooling fan of the RM650x does not spin until you need it, for nearly silent operation.
Wiring
- 1x ATX 20 + 4-pin motherboard power connector.
- 2x EPS/ATX12V 8 Pin (4+4) CPU power connectors
- 4x PCIe 6+2 graphics card power connectors, to take advantage of modern GPUs in combination with your PC's capabilities
- 10x SATA power connectors for SSD or HDD hard drives
- 4x Molex 4-pin connectors for connecting additional peripherals
Protection Technologies
- OPP (Over Power Protection): Function that shuts down the power supply when excessive power is drawn, generally between 110 and 140% of the advertised power.
- OTP (Over Temperature Protection): Protects the power supply from overheating due to a failure, e.g., of the fan.
- UVP (Under Voltage Protection): Protection aimed at shutting down the power supply if the voltage drops too low.
- OVP (Over Voltage Protection): Over voltage protection works similarly to UVP, but in the opposite way.
- SCP (Short Circuit Protection): Short circuit protection measures the resistance on each rail and will shut down when the resistance is lower than 0.1 Ω. Generally, this is combined with OPP, OCP, OVP, and UVP.
Voltages
- Operating Voltage: 100-240V
Maximum Load:
- Line Current +3.3 V: 20A
- Line Current +5 V: 20A
- Line Current +12 V: 62.5A
- Line Current -12 V: 0.3A
- Line Current +5 Vsb: 3A
Package Contents
- Power Supply
- Power Cable
- Cable Ties
- Mounting Screws
Compatibility with Graphics Cards & Processors
Nvidia
AMD
Product Guides
Dimensions
- Power
- 750 W
- Size
- ATX
- Modularity
- Full Modular
- Certification
- 80 Plus Gold
- Fan Dimension
- 135 mm
- Power Protection
- Over Power Protection (OPP), Over Temperature Protection (OTP), Over Voltage Protection (OVP), Short Circuit Protection (SCP), Under Voltage Protection (UVP)
- Color
- Black
ATX Version
- ATX 3.1
- -
