Very good build quality, easy installation and almost instant connection, no interruptions were observed, BUT there is a problem.
The history:
I had Cosmote 50 Mbps, upgraded to 100 Mbps and due to the use of the standard infrastructure of the installation, I had the router in the computer room and used a Wi-Fi repeater to send the signal to the living room where the TV was.
I upgraded to Cosmote 100 Fiber. The router had to be placed in the hallway, where the optical fiber from the provider ends. In order to reach the rooms, especially the one with the computer where I worked, I used an existing TR-Link TL-4010P/500Mbps kit.
Disappointment, the speed was 20 maximum 30 Mbps.

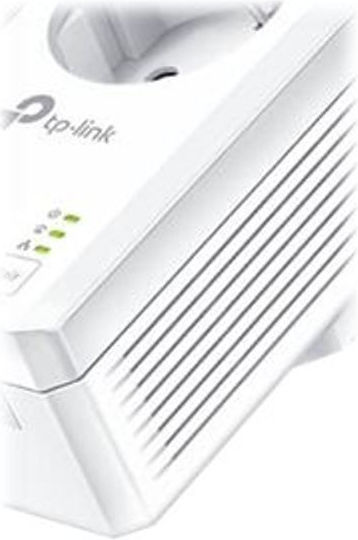

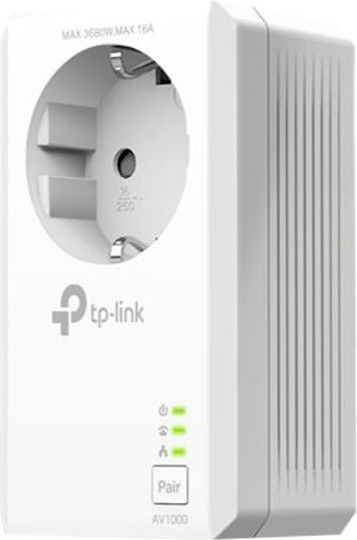

I was advised to switch to a larger one and I got the TpLink TL-PA7027P/1000 Mbps.
Improvement, it went up to 55 maximum 60 Mbps, disappointment again.
Due to an offer, the connection was upgraded to Cosmote Fiber-VDSL 300 Mbps.
Significant improvement, speeds increased to 95/98 maximum 105 Mbps. (remember the number).
I started searching, and after experiencing it, I learned the following.
The speeds mentioned on the powerline boxes are "gross bandwidth", meaning the maximum possible range provided by the device BUT NOT THE ACTUAL, which unfortunately is 30-40% of the maximum possible.
I realized this by downloading the TP Link application and it showed that the communication between the TL-PA7027P pair (room with hallway) was at 360-385 Mbps, exactly as expected for the actual (1000 X 30-40% =~300-400 Mbps!!). The reason is the decrease due to building wiring, connectors, panel, fuses, as well as when during transmission a packet is "lost", it sends back a reverse signal to be retransmitted, the one powerline retransmits it but all these "cut" the nominal transmission speed.
And here is the secret >>> The SAME percentage applies to the bandwidth of the connection line, meaning for every 100 Mbps connection, we will get 30-40% which is 30-40 Mbps.
And here is where the numbers I mentioned earlier come in: For the TP-PA7027P/1000 Mbps pair, the 30-40% on a 300 Mbps line (Cosmote Fiber-VDSL) are expected to pass 90 maximum 120 Mbps, which is why my speed test gives me 98-105 Mbps (32.6-35.0%).
Technically PERFECT, but in reality, based on what I expected - before I learned - and how much it cost, it falls 1 step short of disappointment.
By the way, connecting the PC with a 20-meter Cat5-UTP cable directly to the router, oh the miracle, I had 298-299 Mbps with a nominal 300 Mbps !!!
Therefore, if we don't have any other means of connection (Cat6 cable/visible channel, or Fiber inside the house), unfortunately, higher speeds cannot be achieved using power line.
Πολύ καλή ποιότητα κατασκευής, εύκολη εγκατάσταση και σχεδόν αμεση σύνδεση, δεν παρατηρήθηκαν διακοπές, ΑΛΛΑ υπάρχει πρόβλημα.
Το ιστορικό:
Είχα Cosmote 50 Mbs, αναβαθμίστηκε 100 Mbs και λόγω χρήσης της τυπικής υποδομής της εγκατάστασης, είχα το router στο δωμάτιο του υπολογιστή και με repeater Wi-Fi εστελνα το σήμα στο σαλόνι στην TV.
Εγινε αναβάθμιση σε Cosmote 100 Fiber. Αναγκαστικά το router μπήκε στο χωλ, εκεί που σταματάει η οπτική ίνα που έρχεται από τον πάροχο. Για να πάω στα δωμάτια και κυρίως σε αυτό με τον υπολογιστή όπου εργαζόμουν, χρησιμοποίησα ενα υπάρχον κιτ TR-Link TL-4010P/500Mbs.
Απογοήτευση, η ταχύτητα ήταν 20 μέγιστο 30 Mbs.
Μου σύστησαν να αλλάξω σε μεγαλίτερο και πήρα το TpLink TL-PA7027P/1000 Mbs.
Βελτίωση, ανέβηκε στα 55 μέγιστο 60 Mbs, απογοήτευση ξανά.
Λόγω προσφοράς η σύνδεση αναβαθμίστηκε σε Cosmote Fiber-VDSL 300 Mbs.
Σημαντική βελτίωση, οι ταχύτητες ανέβηκαν στα 95/98 μέγιστο 105 Mbs. (θυμηθείτε το νούμερο).
Αρχισα να ψάχνω, και αφού έπαθα, εμαθα τα παρακάτω.
Οι ταχύτητες που αναφέρονται στα κουτιά των powerlines είναι "gross bandwidth" δηλαδή το μέγιστο δυνατό εύρος που παρέχει η συσκευή ΑΛΛΑ ΟΧΙ ΤΟ ΩΦΕΛΙΜΟ, που δυστυχώς είναι 30-40% του μέγιστου δυνατού.
Το διαπίστωσα κατεβάζοντας το application της TP Link και φάνηκε ότι η επικοινωνία μεταξύ του ζεύγους TL-PA7027P (δωμάτιο με χώλ) ήταν στα 360-385 Mbs, ακριβώς όσο το προσδοκιμο της ωφέλιμης (1000 Χ 30-40% =~300-400 Mbs!!). Ο λόγος είναι η μείωση λόγω καλωδιώσεων κτιρίου, κλέμες, πίνακας, ασφάλειες, καθώς επίσης όταν κατά την μετάδοση "χαθεί" ένα πακέτο, επιστρέφει αντίθετο σήμα να ξανασταλλεί, το ξαναστέλνει το ένα powerline αλλά όλα αυτα "κόβουν" την ονομαστική ταχύτητα μετάδοσης.
Και εδώ είναι το μυστικό >>> ΑΝΤΙΣΤΟΙΧΟ ποσοστό εφαρμόζεται ΚΑΙ στο εύρος της γραμμής της σύνδεσης, δηλαδή για κάθε 100 Mbs σύνδεσης θα πάρουμε το 30-40% αρα 30-40 Mbs.
Και εδώ κουμπώνει το νούμερα που είπα παραπάνω : Για το ζέυγος TP-PA7027P/1000 Mbs το 30-40% σε γραμμή 300 Mbs (Cosmote Fiber-VDSL) αναμένονται να περάσουν 90 μέγιστο 120 Mbs, γιαυτό το peed test μου δίνει 98-105 Mbs (32,6-35,0%).
Τεχνικά ΑΡΤΙΟ, αλλα στην πραγματικότητα με βάση αυτό που περιμενα -πρίν μάθω- και το πόσο κόστισε απέχει 1 βήμα από την απογοήτευση.
Παρεμπιπτόντως, συνδέοντας τον Η/Υ με 20 μετρο καλώδιο Cat5-UTP κατευθείν πάνω στο router, ώ του θαύματος είχα 298-299 Mbs με ονομαστική 300 Mbs !!!
Επομένως εάν δεν έχουμε αλλο τρόπο σύνδεσης (καλωδιο cat6/εμφανές κανάλι, ή Fiber εντός του σπιτιού), δυστυχώς δεν επιτυγχάνονται μεγαλίτερες ταχύτητες με χρήση power line.
