NG NG UPS On-Line 3000VA with 4 Schuko AC Outlets
UPS

NG NG UPS On-Line 3000VA with 4 Schuko AC Outlets

Batteries 4 X 12v 9A

  • High frequency and true double conversion with DSP digital control technology
  • Input power factor correction (PFC)
  • Wide input voltage range
  • Output power factor 0.9 (optional)
  • Cold...

Batteries 4 X 12v 9A

  • High frequency and true double conversion with DSP digital control technology
  • Input power factor correction (PFC)
  • Wide input voltage range
  • Output power factor 0.9 (optional)
  • Cold start
  • Self-diagnosis frequency
  • ECO mode for energy saving
  • Selectable output voltage via LCD
  • Output bypass setting for 1, 2, 3 kVA via LCD
  • Available frequency...
See full description See full description

Top specs

  • Size

    Tower

    Form that resembles a classic tower (Tower case) computer. Suitable for spaces with sufficient height and depth. Usually larger and more powerful UPS.

  • AC Outlets

    The AC outlets are the power output sockets where you connect the devices you want to protect and supply with power through the UPS.

  • Type

    (VFI) On-Line/Double Conversion

    They filter the current coming from the socket and store it in the battery/batteries, while the devices are exclusively powered by the battery/batteries. They offer maximum protection against voltage fluctuations and power outages. They are recommended for sensitive devices and equipment.

  • Plug Type

    Schuko

    European grounded socket, type F.
  • See all

Learn more about invoicing
Review the product
Product report

Description

Description

Batteries 4 X 12v 9A

  • High frequency and true double conversion with DSP digital control technology
  • Input power factor correction (PFC)
  • Wide input voltage range
  • Output power factor 0.9 (optional)
  • Cold start
  • Self-diagnosis frequency
  • ECO mode for energy saving
  • Selectable output voltage via LCD
  • Output bypass setting for 1, 2, 3 kVA via LCD
  • Available frequency conversion mode 50 Hz / 60 Hz for 6 ~ 10 kVA
  • Built-in output isolation transformer for 6 ~ 10 kVA
  • Selectable low battery voltage via LCD
  • Self-test on startup
  • Advanced battery management (ABM)
  • Short circuit and overload protection
  • Automatic battery charging in UPS OFF state
  • Automatic fan speed control when loads vary
  • Standard RS232 communication port and RJ45 protection
  • Optional USB/SNMP communication port
  • Optional emergency power off (EPO)
  • Optional battery extension
  • Optional manual bypass for 6 ~ 10 kVA
  • Optional parallel redundancy N+X for 6 ~ 10 kVA

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

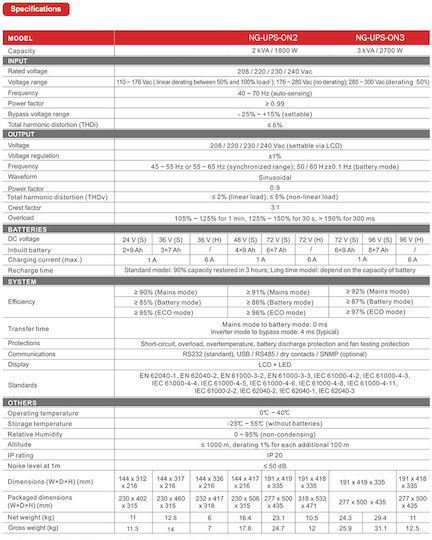

Specifications

Specifications

Dimensions

Type
(VFI) On-Line/Double Conversion

Type

(VFI) On-Line/Double Conversion
They filter the current coming from the socket and store it in the battery/batteries, while the devices are exclusively powered by the battery/batteries. They offer maximum protection against voltage fluctuations and power outages. They are recommended for sensitive devices and equipment.
Power (VA)
3000 VA

Power (VA)

Indicates the maximum electrical load that the UPS can support and is measured in Volt-Amperes (VA). It is the apparent power of the UPS and is used to compare the size/category of UPS units.

Note: VA is not the actual power that devices can consume. To determine what you can connect, always check the Power (W) as well.

Usage Examples:

  • 800VA 480–560 W Router, modem, small computer, LED lighting
  • 1000VA 600–700 W Office PC with monitor, small printer, NAS
  • 1500VA 900–1050 W Powerful PC or gaming, multiple office devices
  • 2000VA 1200–1400 W Workstation, small server, cash register + POS
  • 3000VA 1800–2100 W Server, rack equipment, professional labs, studio
Size
Tower

Size

Tower
Form that resembles a classic tower (Tower case) computer. Suitable for spaces with sufficient height and depth. Usually larger and more powerful UPS.
Output Waveform
Pure Sine Wave

Output Waveform

Pure Sine Wave
They are ideal for the efficient operation of sensitive and important machines such as hospital equipment, servers, telecommunications, and laboratory components. It is recommended to use them in machines that have Active PFC power supplies.
Display Screen
Digital Display

Connectivity

USB
No
AC outlets
4

AC outlets

The AC outlets are the power output sockets where you connect the devices you want to protect and supply with power through the UPS.
Plug Type
Schuko

Plug Type

Schuko
European grounded socket, type F.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Batteries 4 X 12v 9A

  • High frequency and true double conversion with DSP digital control technology
  • Input power factor correction (PFC)
  • Wide input voltage range
  • Output power factor 0.9 (optional)
  • Cold start
  • Self-diagnosis frequency
  • ECO mode for energy saving
  • Selectable output voltage via LCD
  • Output bypass setting for 1, 2, 3 kVA via LCD
  • Available frequency conversion mode 50 Hz / 60 Hz for 6 ~ 10 kVA
  • Built-in output isolation transformer for 6 ~ 10 kVA
  • Selectable low battery voltage via LCD
  • Self-test on startup
  • Advanced battery management (ABM)
  • Short circuit and overload protection
  • Automatic battery charging in UPS OFF state
  • Automatic fan speed control when loads vary
  • Standard RS232 communication port and RJ45 protection
  • Optional USB/SNMP communication port
  • Optional emergency power off (EPO)
  • Optional battery extension
  • Optional manual bypass for 6 ~ 10 kVA
  • Optional parallel redundancy N+X for 6 ~ 10 kVA

Manufacturer

Manufacturer Details

Warnings & Safety Information

Dimensions

Type
(VFI) On-Line/Double Conversion

Type

(VFI) On-Line/Double Conversion
They filter the current coming from the socket and store it in the battery/batteries, while the devices are exclusively powered by the battery/batteries. They offer maximum protection against voltage fluctuations and power outages. They are recommended for sensitive devices and equipment.
Power (VA)
3000 VA

Power (VA)

Indicates the maximum electrical load that the UPS can support and is measured in Volt-Amperes (VA). It is the apparent power of the UPS and is used to compare the size/category of UPS units.

Note: VA is not the actual power that devices can consume. To determine what you can connect, always check the Power (W) as well.

Usage Examples:

  • 800VA 480–560 W Router, modem, small computer, LED lighting
  • 1000VA 600–700 W Office PC with monitor, small printer, NAS
  • 1500VA 900–1050 W Powerful PC or gaming, multiple office devices
  • 2000VA 1200–1400 W Workstation, small server, cash register + POS
  • 3000VA 1800–2100 W Server, rack equipment, professional labs, studio
Size
Tower

Size

Tower
Form that resembles a classic tower (Tower case) computer. Suitable for spaces with sufficient height and depth. Usually larger and more powerful UPS.
Output Waveform
Pure Sine Wave

Output Waveform

Pure Sine Wave
They are ideal for the efficient operation of sensitive and important machines such as hospital equipment, servers, telecommunications, and laboratory components. It is recommended to use them in machines that have Active PFC power supplies.
Display Screen
Digital Display

Connectivity

USB
No
AC outlets
4

AC outlets

The AC outlets are the power output sockets where you connect the devices you want to protect and supply with power through the UPS.
Plug Type
Schuko

Plug Type

Schuko
European grounded socket, type F.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
