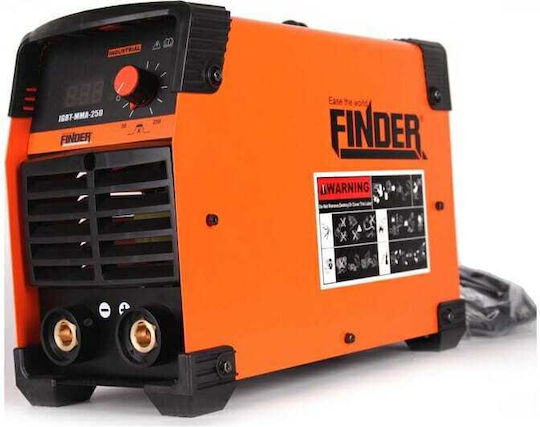

Finder IGBT-250 Welding Machine MMA with Maximum Welding Current 160A and Duty Cycle 35%
Welding Machines

Finder IGBT-250 Welding Machine MMA with Maximum Welding Current 160A and Duty Cycle 35%

Key features:

  • Input voltage (V): 220V
  • Frequency (HZ): 50 / 60HZ
  • Insulation class: H
  • Protection degree: IP21S
  • Weight: 4.8 kg
See full description

Top specs

  • Welding Current

    160

    Suitable for use in medium-thickness metal constructions and pipelines.

  • Duty Cycle

    The Duty Cycle is the portion of a ten-minute period that a welding machine can operate continuously at maximum Amperes before it needs to stop and cool down.

    2.

    For example, a welding machine with a maximum Amperage of 200 A and a Duty Cycle of 30% can operate continuously at 200 A for 3 minutes before it needs to stop.

  • Power Supply Voltage

    220

    It is the supply voltage that the machine requires from the electrical grid.

  • Power

    8.6

    Affects the power consumption of the machine and determines if it can be supported by the electrical network you are using.
  • See all
191 00 €
Delivery Tue, 03 Nov - Thu, 05 Nov
23,00 €   shipping cost
Sent from Greece
From One and Only Shop 4.4 (16)
4.4 (16 reviews)
Greece
20+ pieces
See Tools on the page of One and Only Shop

Learn more about invoicing
Review the product
Product report

Description

Description

Capabilities

MMA welding machine from the manufacturer Finder. The MMA electrode method creates thick and strong welds without the need for an external gas supply, making it ideal for welding outside the workshop. It can operate continuously for 3.5 minutes at 160A before needing to stop to cool down. Therefore, you may need more time to melt thicker wires and make more passes on thick welds due to the low maximum amperage it supports. Its weight reaches 7.2kg.

Features

  • Input Voltage (V): 220V
  • Frequency (HZ): 50 / 60HZ
  • Rated Input Capacity (KVA): 8.6
  • Duty Cycle: 160A-35%
  • Input Current: 39
  • Output Current: 30-160
  • No-load Voltage (V): 80V
  • Electrode (mm): 2.5-5.0 mm
  • Insulation Class: H
  • Protection Degree: IP21S
  • Weight: 4.8 kg

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

Type
MMA

Type

MMA

Creates thick and strong bonds without the need for external gas supply, making it ideal for out-of-lab welding.
Welding Current (max)
160 A

Welding Current (max): 160


Suitable for use in medium-thickness metal constructions and pipelines.
Operation Cycle (max Ampere)
35 %

Operation Cycle (max Ampere)

The Duty Cycle is the portion of a ten-minute period that a welding machine can operate continuously at maximum Amperes before it needs to stop and cool down.

2.

For example, a welding machine with a maximum Amperage of 200 A and a Duty Cycle of 30% can operate continuously at 200 A for 3 minutes before it needs to stop.
Supply Voltage
220 V

Supply Voltage: 220


It is the supply voltage that the machine requires from the electrical grid.
Power
8.6 kVA

Power: 8.6


Affects the power consumption of the machine and determines if it can be supported by the electrical network you are using.
Maximum Electrode Diameter
5 mm

Maximum Electrode Diameter: 5


The maximum electrode thickness that the machine can support, depending on the maximum current it can provide.
Weight
7200 gr

Additional Features

Inverter
No
IGBT
Yes

IGBT


Allows the conversion of direct current (DC) voltage to alternating current (AC) or the output of direct current at a higher or lower intensity.
VRD
No
with Voltage Stabilizer
No
for Generator with AVR
No

Features

Hot Start
No
Anti Stick
No
Arc Force
No
2T Operation
No
4T Mode
No
Spot Function
No
Pulsed
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Capabilities

MMA welding machine from the manufacturer Finder. The MMA electrode method creates thick and strong welds without the need for an external gas supply, making it ideal for welding outside the workshop. It can operate continuously for 3.5 minutes at 160A before needing to stop to cool down. Therefore, you may need more time to melt thicker wires and make more passes on thick welds due to the low maximum amperage it supports. Its weight reaches 7.2kg.

Features

  • Input Voltage (V): 220V
  • Frequency (HZ): 50 / 60HZ
  • Rated Input Capacity (KVA): 8.6
  • Duty Cycle: 160A-35%
  • Input Current: 39
  • Output Current: 30-160
  • No-load Voltage (V): 80V
  • Electrode (mm): 2.5-5.0 mm
  • Insulation Class: H
  • Protection Degree: IP21S
  • Weight: 4.8 kg

Manufacturer

Manufacturer Details

Warnings & Safety Information

Dimensions

Type
MMA

Type

MMA

Creates thick and strong bonds without the need for external gas supply, making it ideal for out-of-lab welding.
Welding Current (max)
160 A

Welding Current (max): 160


Suitable for use in medium-thickness metal constructions and pipelines.
Operation Cycle (max Ampere)
35 %

Operation Cycle (max Ampere)

The Duty Cycle is the portion of a ten-minute period that a welding machine can operate continuously at maximum Amperes before it needs to stop and cool down.

2.

For example, a welding machine with a maximum Amperage of 200 A and a Duty Cycle of 30% can operate continuously at 200 A for 3 minutes before it needs to stop.
Supply Voltage
220 V

Supply Voltage: 220


It is the supply voltage that the machine requires from the electrical grid.
Power
8.6 kVA

Power: 8.6


Affects the power consumption of the machine and determines if it can be supported by the electrical network you are using.
Maximum Electrode Diameter
5 mm

Maximum Electrode Diameter: 5


The maximum electrode thickness that the machine can support, depending on the maximum current it can provide.
Weight
7200 gr

Additional Features

Inverter
No
IGBT
Yes

IGBT


Allows the conversion of direct current (DC) voltage to alternating current (AC) or the output of direct current at a higher or lower intensity.
VRD
No
with Voltage Stabilizer
No
for Generator with AVR
No

Features

Hot Start
No
Anti Stick
No
Arc Force
No
2T Operation
No
4T Mode
No
Spot Function
No
Pulsed
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
