Sirsen Wired RF Curtain Motion Sensor Microwave & Infrared Scope 8m
Motion Sensors

Sirsen Wired RF Curtain Motion Sensor Microwave & Infrared Scope 8m

Key features:

  • Type: Curtain
  • Connectivity: RF
  • Range: 8m
  • Outdoor detector
See full description

  • Connectivity

    Refers to the wireless communication protocol used by the sensor to connect with other alarm systems or devices.

  • Login

    Wired

    It connects to the installation system via cable.

  • Detection Type

    Microwave

    Detects motion by emitting microwaves and measuring changes in the reflected radiation.

    Infrared

    Detects motion by sensing changes in infrared radiation (heat) emitted by humans or animals.

  • Range

    The range refers to the maximum distance in meters within which it can detect motion.

  • Protection Certification

    IP65

    Suitable for outdoor areas with heavy rain or pressurized water. Provides complete protection against dust and object intrusion, ideal for gardens or industrial spaces.

  • Curtain

    With a narrow detection angle that allows monitoring of a specific area (windows, doors, narrow passages) and prevents false alarms from surrounding movement.

    1
  • See all

User Manual

Product report

Description

Description

The Outgate Sirsen Radar is a wired dual-technology curtain detector suitable for both indoor and outdoor use with an IP65 waterproof rating.

Includes a base for easy installation which can be both on the horizontal and vertical axis, depending on the area we want to cover. With this Detector, we can cover areas by forming a security curtain on balconies, balcony doors, windows, etc.

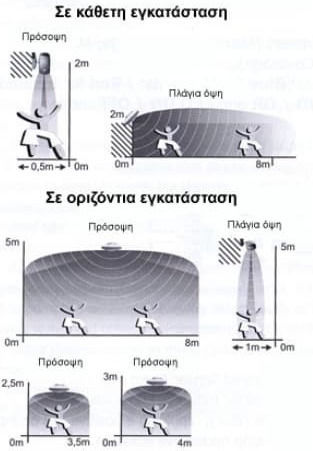

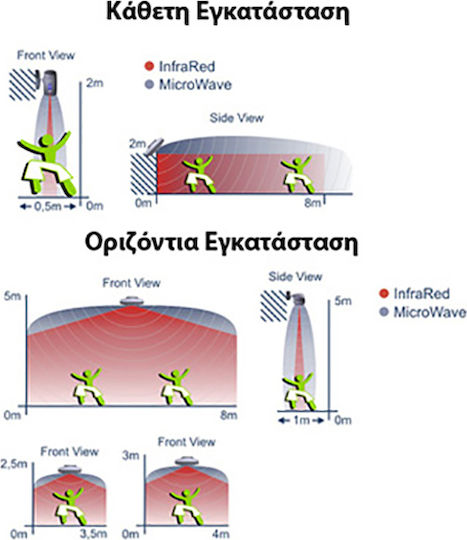

  • Coverage range 8 meters with 10 degrees
  • Dual technology (PIR & Microwave)
  • Option to select AND or OR operation of the two technologies
  • Independent sensitivity adjustments for Microwave and PIR
  • Power supply voltage 9 ~ 14VDC / Standby 35mA / Operating consumption 42mA
  • Microwave operation supervision with blue LED
  • PIR operation supervision with red LED
  • Enclosure waterproof rating IP65
  • Dimensions (L x W x H): 10.5x3.5x3.7cm
  • Color white

Operation

Combines infrared technology and Doppler Radar. Specifically, the OutGate model incorporates 2 detectors based on the above technologies, namely a 24GHz Doppler Radar with 8 tiny 8 K band antennas and a passive infrared sensor with integrated Fresnel lenses.

This combination with the ability to adjust operation in "AND" mode (activation of both technologies) or "OR" mode (activation of one of the two technologies) results in the detector's operation, controlled by a microprocessor, being even more reliable and simultaneously efficient depending on the prevailing conditions,

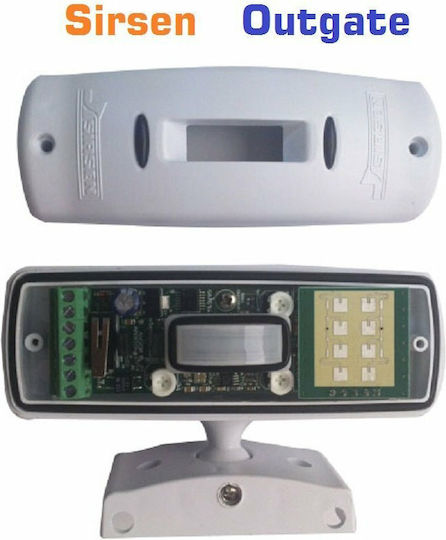

Construction

It stands out for its compact construction and ease of installation. It also features independent sensitivity adjustments for the microradar and the infrared, as well as a delay setting for the microradar.

Attention: After installation, pay special attention to the insulation of the cable entry with silicone.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Guides

User Manual

Specifications

Detection Type
Microwave, Infrared

Detection Type

Microwave

Detects motion by emitting microwaves and measuring changes in the reflected radiation.

Infrared

Detects motion by sensing changes in infrared radiation (heat) emitted by humans or animals.
Protection Certification
IP65

Protection Certification

IP65
Suitable for outdoor areas with heavy rain or pressurized water. Provides complete protection against dust and object intrusion, ideal for gardens or industrial spaces.
Scope
8 m

Scope

The range refers to the maximum distance in meters within which it can detect motion.
Connector
Wired

Connector

Wired

It connects to the installation system via cable.
Battery
No

Battery

Powered by battery.

Additional Features

Antimasking
No

Antimasking

Function that detects any malicious interference, covering or blocking of the lens and automatically activates the alarm.
Tamper
Yes

Tamper

Refers to protection against attempts to tamper with the device. For example, if someone tries to open the sensor's casing or remove it from its position, the sensor will send an alarm signal.
Curtain
Yes

Curtain

With a narrow detection angle that allows monitoring of a specific area (windows, doors, narrow passages) and prevents false alarms from surrounding movement.
Τοποθέτηση
Wall
Recessed
No
PET
No

PET

Motion sensors with this technology are designed to "ignore" the movement of small animals, such as dogs and cats, thus preventing false alarms.
Built-in Camera
No

Smart Attributes

Connectivity
RF

Connectivity

Refers to the wireless communication protocol used by the sensor to connect with other alarm systems or devices.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
