V-TAC VT-8092 Wired Infrared Motion Sensor 360° Detection Scope 8m
Motion Sensors

V-TAC VT-8092 Wired Infrared Motion Sensor 360° Detection Scope 8m

V-TAC 360° In-Ceiling Motion Sensor White

Electrical Data

  • Voltage: AC 220-240V
  • Frequency: 50 / 60Hz

Sensor Features

  • Sensor: Yes
  • IP Rating: IP20
  • Sensor Type: Infrared motion
  • Detection Range: 360º
  • ...

V-TAC 360° In-Ceiling Motion Sensor White

Electrical Data

  • Voltage: AC 220-240V
  • Frequency: 50 / 60Hz

Sensor Features

  • Sensor: Yes
  • IP Rating: IP20
  • Sensor Type: Infrared motion
  • Detection Range: 360º
  • Detection Distance: Maximum 8 m (<24 ° C)
  • Detection Motion Speed: 0.6 - 1.5 m/s
  • Time Delay: Minimum 10sec 3sec, Maximum 15 minutes 2 minutes

Nominal Load

  • Incandescent...
24>
See full description See full description

  • Login

    Wired

    It connects to the installation system via cable.

  • Battery

    Powered by battery.

  • Detection Type

    Infrared

    Detects motion by sensing changes in infrared radiation (heat) emitted by humans or animals.

  • Range

    The range refers to the maximum distance in meters within which it can detect motion.

  • Detection Angle

    The width of the area that a sensor can cover to detect motion. The more degrees, the larger the coverage field.

  • Protection Certification

    IP20

    Suitable only for indoor use in a dry environment. Provides protection against the ingress of objects larger than 12 mm.
  • See all
Review the product
Product report

Description

Description

V-TAC 360° In-Ceiling Motion Sensor White

Electrical Data

  • Voltage: AC 220-240V
  • Frequency: 50 / 60Hz

Sensor Features

  • Sensor: Yes
  • IP Rating: IP20
  • Sensor Type: Infrared motion

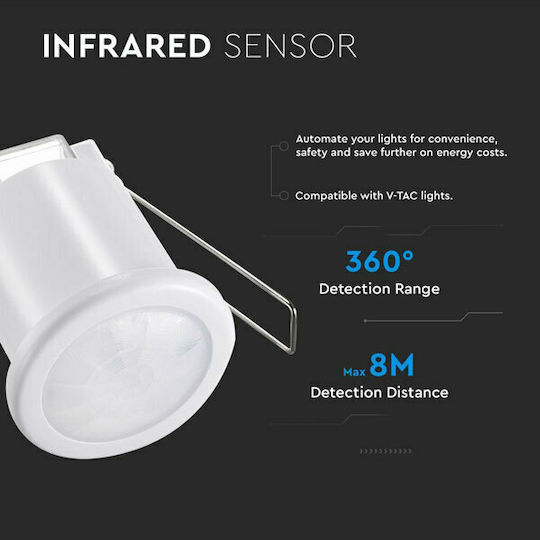

  • Detection Range: 360º
  • Detection Distance: Maximum 8 m (<24 ° C)
  • Detection Motion Speed: 0.6 - 1.5 m/s

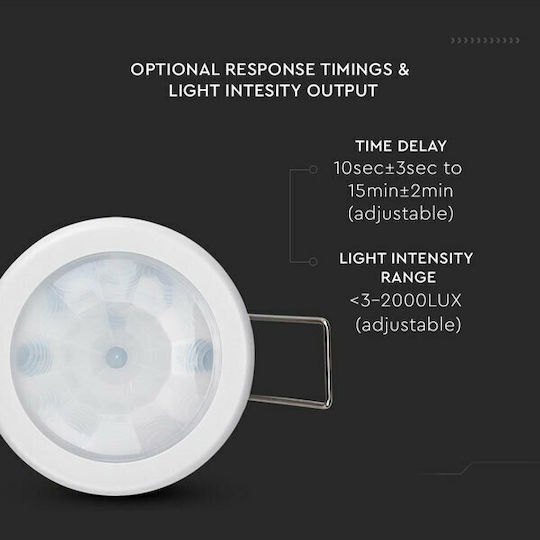

  • Time Delay: Minimum 10sec ± 3sec, Maximum 15 minutes ± 2 minutes

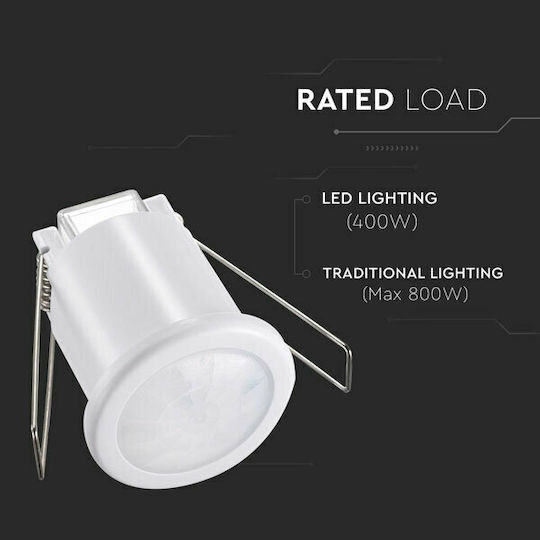

Nominal Load

  • Incandescent Lamp: 800 W
  • Halogen/LED Lamp: 400W
  • Ambient Light: <3-2000LUX Adjustable

Product Data

  • Order Code: 6608
  • Product Code: VT-8092
  • Item Weight: 0.092 kg

Certificates & Standards

  • Certification: CE, EMC, ROHS

Additional

  • Brand: V-TAC
  • Installation Height: 2.2-4m
  • Power Consumption: Approximately 0.9 W

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Detection Type
Infrared

Detection Type

Infrared

Detects motion by sensing changes in infrared radiation (heat) emitted by humans or animals.
Detection Angle
360 °

Detection Angle

The width of the area that a sensor can cover to detect motion. The more degrees, the larger the coverage field.
Protection Certification
IP20

Protection Certification

IP20

Suitable only for indoor use in a dry environment. Provides protection against the ingress of objects larger than 12 mm.
Scope
8 m

Scope

The range refers to the maximum distance in meters within which it can detect motion.
Connector
Wired

Connector

Wired

It connects to the installation system via cable.
Battery
Yes

Battery

Powered by battery.

Additional Features

Antimasking
No

Antimasking

Function that detects any malicious interference, covering or blocking of the lens and automatically activates the alarm.
Tamper
No

Tamper

Refers to protection against attempts to tamper with the device. For example, if someone tries to open the sensor's casing or remove it from its position, the sensor will send an alarm signal.
Curtain
No

Curtain

With a narrow detection angle that allows monitoring of a specific area (windows, doors, narrow passages) and prevents false alarms from surrounding movement.
Placement
Ceiling
Recessed
Yes
PET
No

PET

Motion sensors with this technology are designed to "ignore" the movement of small animals, such as dogs and cats, thus preventing false alarms.
Built-in Camera
No

Smart Attributes

Connectivity
-

Connectivity

Refers to the wireless communication protocol used by the sensor to connect with other alarm systems or devices.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

V-TAC 360° In-Ceiling Motion Sensor White

Electrical Data

  • Voltage: AC 220-240V
  • Frequency: 50 / 60Hz

Sensor Features

  • Sensor: Yes
  • IP Rating: IP20
  • Sensor Type: Infrared motion
  • Detection Range: 360º
  • Detection Distance: Maximum 8 m (<24 ° C)
  • Detection Motion Speed: 0.6 - 1.5 m/s
  • Time Delay: Minimum 10sec ± 3sec, Maximum 15 minutes ± 2 minutes

Nominal Load

  • Incandescent Lamp: 800 W
  • Halogen/LED Lamp: 400W
  • Ambient Light: <3-2000LUX Adjustable

Product Data

  • Order Code: 6608
  • Product Code: VT-8092
  • Item Weight: 0.092 kg

Certificates & Standards

  • Certification: CE, EMC, ROHS

Additional

  • Brand: V-TAC
  • Installation Height: 2.2-4m
  • Power Consumption: Approximately 0.9 W

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Detection Type
Infrared

Detection Type

Infrared

Detects motion by sensing changes in infrared radiation (heat) emitted by humans or animals.
Detection Angle
360 °

Detection Angle

The width of the area that a sensor can cover to detect motion. The more degrees, the larger the coverage field.
Protection Certification
IP20

Protection Certification

IP20

Suitable only for indoor use in a dry environment. Provides protection against the ingress of objects larger than 12 mm.
Scope
8 m

Scope

The range refers to the maximum distance in meters within which it can detect motion.
Connector
Wired

Connector

Wired

It connects to the installation system via cable.
Battery
Yes

Battery

Powered by battery.

Additional Features

Antimasking
No

Antimasking

Function that detects any malicious interference, covering or blocking of the lens and automatically activates the alarm.
Tamper
No

Tamper

Refers to protection against attempts to tamper with the device. For example, if someone tries to open the sensor's casing or remove it from its position, the sensor will send an alarm signal.
Curtain
No

Curtain

With a narrow detection angle that allows monitoring of a specific area (windows, doors, narrow passages) and prevents false alarms from surrounding movement.
Placement
Ceiling
Recessed
Yes
PET
No

PET

Motion sensors with this technology are designed to "ignore" the movement of small animals, such as dogs and cats, thus preventing false alarms.
Built-in Camera
No

Smart Attributes

Connectivity
-

Connectivity

Refers to the wireless communication protocol used by the sensor to connect with other alarm systems or devices.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
