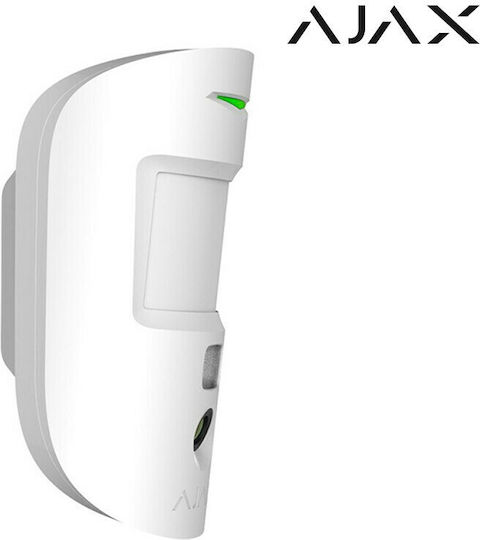

Ajax Systems MotionCam PET Wireless RF Motion Sensor Microwave & Infrared 80° Range 12m
Motion Sensors

Ajax Systems MotionCam PET Wireless RF Motion Sensor Microwave & Infrared 80° Range 12m

Key features:

  • Type: Motion
  • Range: 12m
  • With Built-in Camera
  • Pet Detection
  • Compatible only with Hub2 or Hub2 Plus
See full description

  • Connectivity

    Refers to the wireless communication protocol used by the sensor to connect with other alarm systems or devices.

  • Login

    Wireless

    It connects wirelessly via a wireless communication protocol to the installation system. It is powered by a battery.

  • Battery

    Powered by battery.

  • Detection Type

    Microwave

    Detects motion by emitting microwaves and measuring changes in the reflected radiation.

    Infrared

    Detects motion by sensing changes in infrared radiation (heat) emitted by humans or animals.

  • Range

    The range refers to the maximum distance in meters within which it can detect motion.

  • Detection Angle

    The width of the area that a sensor can cover to detect motion. The more degrees, the larger the coverage field.

  • PET

    Motion sensors with this technology are designed to "ignore" the movement of small animals, such as dogs and cats, thus preventing false alarms.

    1

  • Mounting Height

    The recommended maximum installation height of the sensor.
  • See all

User Manual

Product report

Description

Description

Wireless motion detector (PIR Sensor) with built-in camera, for visual alarm verification.

At a glance

  • MotionCam is a wired motion detector with photo verification support.
  • It is installed indoors.
  • Detects motion at a distance of up to 12 meters.
  • Ignores pets when installed and configured correctly.
  • The detector is available in two versions: with and without photo support (upon request).
  • Wired communication has a range of up to 2,000 meters.
  • Compatible only with Hub2 or Hub2 Plus.


    PET

    When installed and configured correctly, the MotionCam does not react to animals up to 50 cm in height and up to 20 kg in weight.

    The detector should be installed at 2.4 meters without obstructing its view. For example, in a corner where the view will not be obstructed by a wardrobe or other furniture that a pet might climb on.

    It is also important to set the correct sensitivity in the detector settings:

    • High — the detector does not react to cats (up to 25 cm in height).
    • Medium — does not react to small dogs (up to 35 cm in height).
    • Low — does not react to animals up to 50 cm in height.

    When indoor motion detectors are installed below the recommended height, animals move into the hypersensitivity zone. The detector may trigger an alarm. The detector will also notify if the animal can jump to the level of the MotionProtect Plus or move close to it.


    Photo Verification

    • Photo verification in 9 seconds without privacy concerns
    • Adjustable photo resolution: 640×480 - 320×240 (default) - 160×120 px
    • IR backlight: for night photography and low light conditions
    • Image series from 1 to 5 snapshots
    • The photo delivery time depends on the image resolution selected in the device settings.
    • Uses two specialized protocols simultaneously. Jeweller for sending instant alarms and Wings for fast image delivery.

    With respect

    • MotionCam is designed to monitor the security of your space, not you! The detectors do not have the ability to take photos at will.
    • The camera is activated only when motion is detected, and the recorded data is encrypted both during transfer and storage. Additionally, the data is not subject to analysis by anyone other than you, so you don't have to constantly worry about someone watching you as with conventional cameras!

    High Detection Accuracy

    • Special Lens:  Fresnel lenses are designed so that the infrared radiation patterns of a human, an animal, and thermal noise appear differently. The MotionCam Jeweler lens provides the detector with accurate information about the thermal object in the detection zone and the nature of its movement.
    • The installation of the MotionCam Jeweler at the correct point and height ensures an informative thermal diagram and significantly improves detection accuracy. Professional installation also makes the operation more effective for pets.
    • Filter for thermal interference. The detector immediately analyzes the thermal diagram:  the intensity of infrared radiation, the size of the thermal spot, the speed of movement, the time spent in the detection zone and other parameters, developing SmartDetect. The software algorithm accurately responds to a human and does not bother the user with false alarms.

    Specifications

    • Detection angle: 88.5° horizontal / 80° vertical
    • Recommended installation height: 2.4m
    • Pet option: Weight up to 20kg - height up to 50cm
    • Camera field of view: 90 degrees
    • Visual alarm verification: 9sec photo transmission time / resolution 640x480px
    • Tamper protection
    • Wireless transmission power: 20 mW
    • Communication protocols: Jeweller (868.0-868.6 MHz), Wings
    • Maximum distance between detector and central unit (HUB): Up to 1,700 m (in open area)
    • Power supply: CR123A battery
    • Power supply voltage: 3 V
    • Battery life: Up to 4 years
    • Operating temperature range: From 0°C to +40°C
    • Enclosure protection: IP50
    • Operating humidity: Up to 75%
    • Dimensions: 135x70x60 mm
    • Weight: 167g

    Manufacturer

    Manufacturer Details

    Warnings & Safety Information
    See full description

    Specifications

    Specifications

    Product Guides

    User Manual

    Specifications

    Detection Type
    Microwave, Infrared

    Detection Type

    Microwave

    Detects motion by emitting microwaves and measuring changes in the reflected radiation.

    Infrared

    Detects motion by sensing changes in infrared radiation (heat) emitted by humans or animals.
    Detection Angle
    80 °

    Detection Angle

    The width of the area that a sensor can cover to detect motion. The more degrees, the larger the coverage field.
    Scope
    12 m

    Scope

    The range refers to the maximum distance in meters within which it can detect motion.
    Mounting Height
    2.4

    Mounting Height

    The recommended maximum installation height of the sensor.
    Connector
    Wireless

    Connector

    Wireless

    It connects wirelessly via a wireless communication protocol to the installation system. It is powered by a battery.
    Battery
    Yes

    Battery

    Powered by battery.

    Additional Features

    Antimasking
    No

    Antimasking

    Function that detects any malicious interference, covering or blocking of the lens and automatically activates the alarm.
    Tamper
    No

    Tamper

    Refers to protection against attempts to tamper with the device. For example, if someone tries to open the sensor's casing or remove it from its position, the sensor will send an alarm signal.
    Curtain
    No

    Curtain

    With a narrow detection angle that allows monitoring of a specific area (windows, doors, narrow passages) and prevents false alarms from surrounding movement.
    Τοποθέτηση
    Wall
    Recessed
    No
    PET
    Yes

    PET

    Motion sensors with this technology are designed to "ignore" the movement of small animals, such as dogs and cats, thus preventing false alarms.
    Built-in Camera
    Yes

    Smart Attributes

    Connectivity
    RF

    Connectivity

    Refers to the wireless communication protocol used by the sensor to connect with other alarm systems or devices.

    Important information

    Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

    See all specifications
