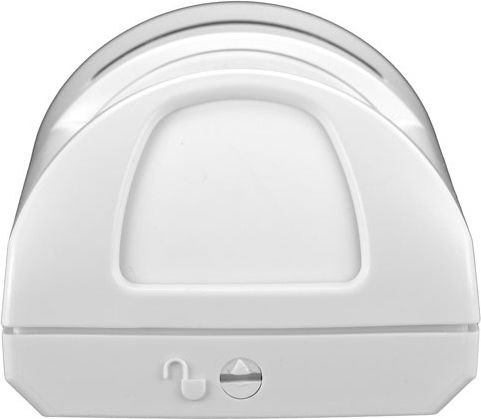

Indoor infrared detector with vertical beam.
The Blue Line Gen2 PIR Motion Detectors (ISC-BPR2) series uses two Fresnel lenses designed to detect movements throughout their field of view.

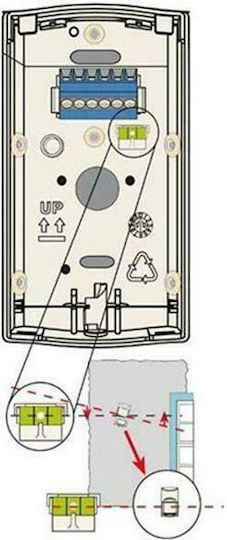

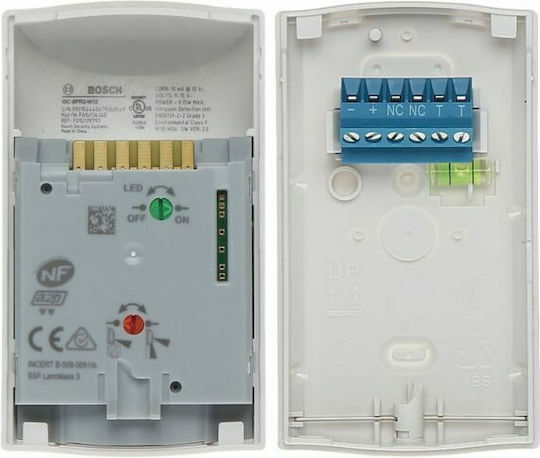

It features a sliding automatic locking casing (without screws), an integrated level, and a removable terminal block without gaps for easier installation.
The First Step Processing (FSP) reacts almost instantaneously to human targets, without producing false alarms from other sources. The FSP adjusts the detector's sensitivity to signal amplitude, polarity, slope, and timing. This eliminates the need for the installation technician to select the sensitivity level, improving the comfort and reliability of the installation.
The detector easily adjusts its sensitivity to be able to recognize human intruders at any temperature.
The sealed optical and electronic systems are located in the front casing and are sealed with a protective cover to prevent damage during installation. The sealed optical chamber also prevents the detector from being affected by air currents and insects.
The externally visible LED alarm can be deactivated after installation.

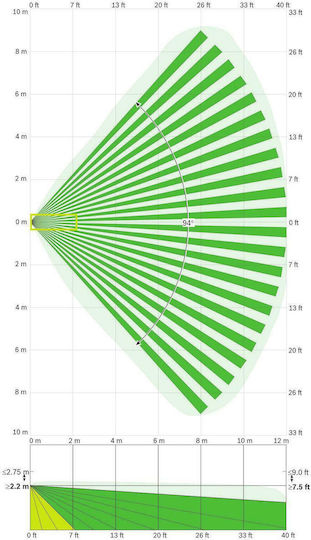

The recommended installation height is 2.2 m to 2.75 m without requiring adjustments. The detector can be installed:
Electrical characteristics:
Mechanical characteristics:
Relay: Normally closed (NC), supervised type A contacts, solid state, rated ≤100 mA, 25 VDC, 2.5 W, <20 Ω
Tamper protection: Normally closed (NC) contacts (with cover) with ≤100 mA, 25 VDC, 2.5 W
(*) The tamper protection circuit is connected to a 24-hour protection circuit.
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
