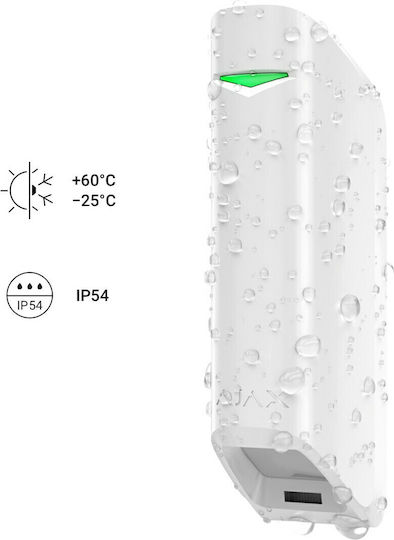

Ajax Systems MotionProtect Curtain Wireless RF Infrared Curtain Motion Sensor 6° Range 15m

Key features:

  • Type: Curtain
  • Battery
  • Detection angle: 90° – 6°
See full description
  • See all

User Manual

Description

Description

Wireless curtain that creates an invisible protection barrier in any space.

The wireless curtain detects motion at a distance of up to 15 meters, has IP54 protection, and can operate even in very low temperatures.

Maximum Performance

  • Operates at distances up to 1,700 meters from the Hub (in open space)
  • Detects motion at a distance of 3 to 15 meters
  • Processes all signals digitally

Easy operation!

  • Sensitivity adjustment in 3 levels
  • Two-way communication with the Hub allowing remote configuration and periodic check
  • Suitable for various spaces such as museums, garages, offices, etc.

Bulletproof Protection

  • Features authentication technology for data theft protection.
  • Protection against sabotage.
  • Adjustable communication supervision time from 12 seconds.
  • Jamming detection and encryption of communication channels.
  • Tamper protection.

Easy Installation

  • Connect to Hub with a few clicks and QR code
  • Signal strength and detection zone can be tested
  • Remotely
  • No need to disassemble the peripheral when using

Reliable Perimeter Protection

At home

With the MotionProtect Curtain detectors, you can secure the perimeter of your home and move freely indoors. If an unknown person intrudes, the system will sound an alarm and call the security company.

In garage

Burglars won't get through the garage door undetected when the MotionProtect Curtain is in action. The curtain detector will continue to operate even if the temperature drops to -10°C.

In a museum

Visitors can browse the exhibits as they wish. But if they cross the line and approach a piece of art, an alarm will sound.

In a pet-friendly apartment

When installed correctly, the MotionProtect Curtain keeps your private property secure and ignores pets, even if they are Saint Bernards.

Proprietary Optical Technology

To create the MotionProtect Curtain, an optical system of two infrared sensors and a multifaceted mirror has been developed. This system allows the detector to receive twice as much information about what is happening in the protected area and to react immediately to human presence.

Rapid response to threats

Whether the intruder is running or not — The MotionProtect Curtain is always on duty. As soon as they enter its field of view, the detector analyzes signals from both PIR sensors and immediately sends a notification.

Reliable Radio Communication

The MotionProtect Curtain connects to the hub via radio communication at a distance of up to 1,700 meters. Jeweller, the proprietary bidirectional communication protocol, protects data transmissions with advanced encryption. In case of interference or jamming, the Ajax security system changes the frequency and notifies you and the dedicated alarm response company.

Easy Installation

2-minute setup!

The MotionProtect Curtain connects to the security system via the Ajax app: scan the QR code, add the detector to the room, and proceed with the installation.

Specifications

  • Detector type: Wireless
  • Usage: Indoor
  • Sensor: Two PIR sensors
  • Detection angle: 90° Vertical – 6° Horizontal
  • Recommended installation height: 2.4 meters
  • Animals not detected: 15 kg or 40 cm
  • Temperature sensor: Available
  • Radio signal power: up to 20mW
  • Power supply: CR123A battery and optional external power supply 3V DC
  • Operating temperature range: From -25°С to +60°С
  • Operating humidity: Up to 95%
  • Dimensions: 134x44x34mm
  • Weight: 118g

Manufacturer

See full description

Specifications

Specifications

Product Guides

User Manual

Specifications

Detection Type
Infrared
Detection Angle
6 °
Protection Certification
IP54
Scope
15 m
Mounting Height
2.4
Connector
Wireless
Battery
Yes

Additional Features

Antimasking
No
Tamper
Yes
Curtain
Yes
Τοποθέτηση
Wall
Recessed
No
PET
No
Built-in Camera
No

Smart Attributes

Connectivity
RF

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Reviews (18)

Reviews

  1. 14
  2. 1
  3. 1
  4. 2 stars
    0
  5. 2
Review this product
  • Dimitris_Gram6551
    5
    1 out of 1 members found this review helpful

    Verified purchase

    I installed it indoors and it works perfectly! Do not install it outdoors, e.g. on balconies, Ajax has released the Curtain Outdoor Jeweller for those areas.

    Translated from Greek ·
    Did you find this review helpful?
  • GV SAT
    5
    3 out of 3 members found this review helpful
    This review is about the colour: Black

    This model has been discontinued for outdoor use; it is now only for indoor use. It was old, but because it did not work properly, they stopped outdoor use. There is another model. I mention this because I am an Ajax installer and I see that many buyers have a problem.

    Translated from Greek ·
    Did you find this review helpful?
  • common logic
    1
    6 out of 16 members found this review helpful
    This review is about the colour: Black

    I have two of these installed on my balconies for 3 years now. Many false alarms, especially in the summer. In order to avoid constant false alarms, it needs to be set at the lowest possible sensitivity. However, it still gives occasional false alarms. At the same time, if someone passes by quickly, it might not even detect them. In the end, I had to install cameras to monitor what's happening. If I knew, I would have installed cameras from the beginning without these specific sensors.
    *I don't know if the situation has been fixed in newer batches than the one I have.

    Translated from Greek ·
    Did you find this review helpful?
  • Jim_Kal1491
    5
    7 out of 8 members found this review helpful

    The sensors have been placed externally on the balcony of an apartment near the windows. They have been connected to the hub2 and I have no false alarms

    Translated from Greek ·
    Did you find this review helpful?
  • aroutis
    3
    4 out of 15 members found this review helpful

    Verified purchase

    Unfortunately, it is not the best for outdoor use, something that Ajax has taken care of with a new range of products, but these also work in conjunction with the new range of hubs. On the other hand, they perform impeccably in indoor spaces.

    Translated from Greek ·
    Did you find this review helpful?
  • loukas_loukass
    1
    4 out of 24 members found this review helpful

    I am not referring to construction quality. Second day of use, nice simple alarm but far from the curtains it detects an outdoor cat that theoretically it shouldn't catch, as the manufacturer says, moving flowers and curtains. In other words, it doesn't work for a house where these things may be happening all day. Bad choice! Better to have contact on every window and an indoor detector in every room instead of external curtains

    Translated from Greek ·
    Did you find this review helpful?
  • Verified purchase

    It does its job exactly as described

    Translated from Greek ·
    Did you find this review helpful?
  • 5
    1 out of 1 members found this review helpful

    Verified purchase

    fits comfortably inside and out as long as it doesn't get wet!! perfect operation if installed correctly

    Translated from Greek ·
    Did you find this review helpful?
  • 5
    0 out of 1 members found this review helpful

    Verified purchase

    It delivers on its promises, installed on a 4-meter bed and works perfectly

    Translated from Greek ·
    Did you find this review helpful?
  • 5
    1 out of 1 members found this review helpful

    Verified purchase

    I have placed it outdoors in the window boxes. It works flawlessly

    Translated from Greek ·
    Did you find this review helpful?
  • 5
    0 out of 1 members found this review helpful

    Verified purchase

    This review is about the colour: Black

    I have placed it outside and it works perfectly.

    Translated from Greek ·
    Did you find this review helpful?
  • 4
    17 out of 18 members found this review helpful

    The product is for indoor use. If installed outdoors, it will give false alarms.

    Translated from Greek ·
    Did you find this review helpful?
