Dimensions

Type

Well

Type

Well

They are designed to pump water from underground sources when the water is at a depth, and are mainly used for water supply, irrigation, and other applications in areas that do not have easy access to surface water.

Power Source

Electric

Power Source

Electric

The power supply refers to the pump's need for electrical energy from an external power source, such as single-phase or three-phase power.

Voltage

Single-Phase

Voltage

Single-Phase

Single-phase power supply refers to the provision of electrical energy from single-phase current (e.g., 230V AC), which is the most common type of supply for residential and small commercial applications.

Power

750 W

Power

It is the energy consumed by the motor to pump water. The greater the power, the more effectively it can lift and move water, especially over long distances or heights.

Cable Length

20 m

Features

with Cutter Impeller

No

with Cutter Impeller

Components that chop, "cut" solid materials, such as organic waste or other particles, before they pass into the pump. They are mainly used in sewage or dirty water pumps, preventing clogging or damage to the system.

Float switch

Yes

Float switch

It is a mechanism that automatically controls the operation of the pump. When the water level reaches a predetermined height, the float activates the pump.

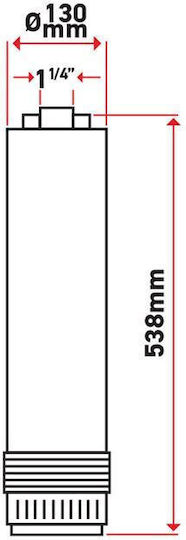

Outlet Nozzle

1 1/4"

Outlet Nozzle

The outlet nozzle refers to the point or the external diameter of the pump from which the pumped water or liquid exits. It is an important feature for determining the connection of the pump with the piping system and affects the flow capacity of the liquid.

Vortex

No

Vortex

The vortex system in submersible water pumps uses vortex technology to create a rotating water current, which helps in the efficient transfer of water, even when it contains particles or solids.

Pumping Specifications

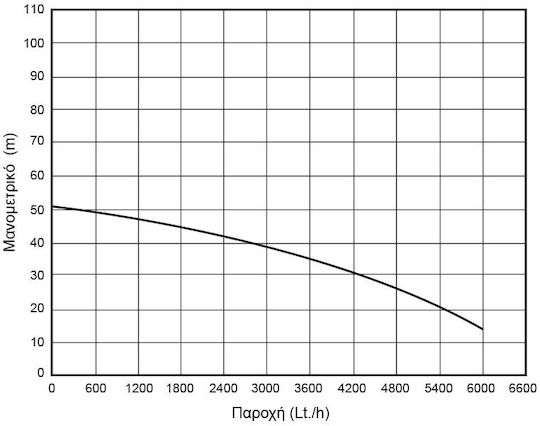

Maximum Head Height

46 m

Maximum Head Height: 46

The Maximum Head Height refers to the maximum height at which the pump can lift water against resistance (such as pipes or filters). As the head height increases, the pump's flow rate decreases.

• The maximum head height is considered by manufacturers to be the point where the water will just barely reach.
• The maximum performance is considered by manufacturers to be the water flow at 0-1 meter head height.

Maximum Output

6 m³/h

Maximum Output

The maximum output or flow of a submersible water pump, as defined by the manufacturers, is the maximum amount of water the pump can move under ideal conditions, usually with zero head (i.e., no lift resistance).

Pump Submersion Depth

20 m

Maximum Particle Size

2 mm

Maximum Particle Size

Specifies the largest size of solid particles (such as sand, stones, or other impurities) that the device can pump without clogging or being damaged.

Materials & Construction

Set

No

Stainless

Yes
