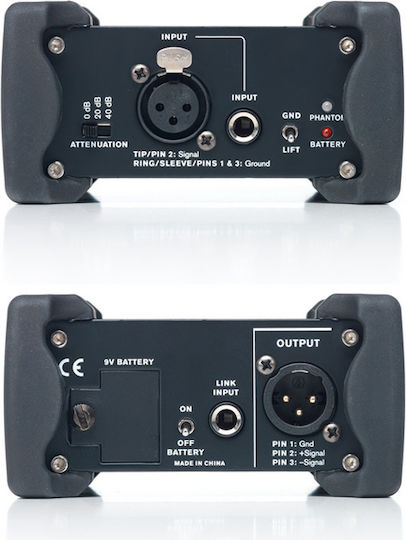

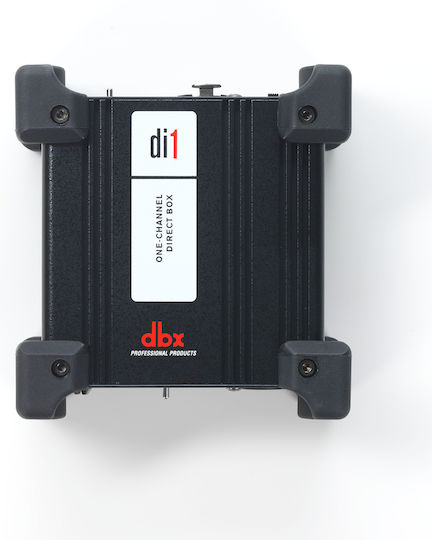

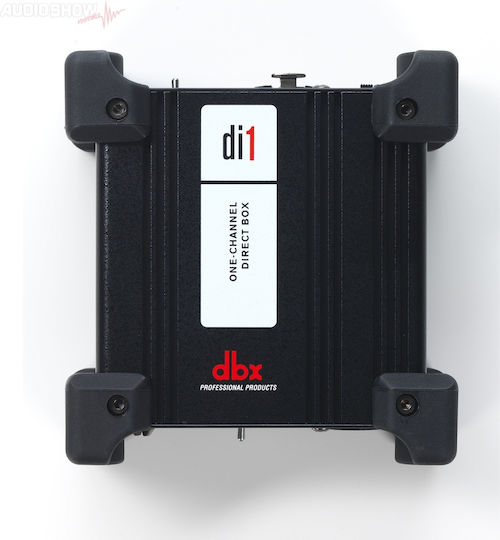

DBX DI-1 Active 1 Channel DI Box with Phantom Power and Battery
DI Boxes

DBX DI-1 Active 1 Channel DI Box with Phantom Power and Battery

  • Input resistance > 250k Ohm
  • Maximum input +12dBu (at 0dB) Level +32dBu (at -20dB) +52dBu (at -40dB)
  • Two parallel 1/4" jacks and one parallel XLR jack (unbalanced),
  • 1/4" Jack: Tip Hot, Sleeve...
  • Input resistance > 250k Ohm
  • Maximum input +12dBu (at 0dB) Level +32dBu (at -20dB) +52dBu (at -40dB)
  • Two parallel 1/4" jacks and one parallel XLR jack (unbalanced),
  • 1/4" Jack: Tip Hot, Sleeve Ground
  • XLR Jack: Pin 2 Hot
  • Pins 1 & 3 Ground
  • Output resistance > 600 Ohms
  • Balanced XLR output jacks
  • Distortion (THD) < 0.005% at 1kHz, 0dBu
  • Output noise <-100db...
See full description See full description
Review the product
Product report

Description

Description

  • Input resistance > 250k Ohm
  • Maximum input +12dBu (at 0dB) Level +32dBu (at -20dB) +52dBu (at -40dB)
  • Two parallel 1/4" jacks and one parallel XLR jack (unbalanced),
  • 1/4" Jack: Tip Hot, Sleeve Ground
  • XLR Jack: Pin 2 Hot
  • Pins 1 & 3 Ground
  • Output resistance > 600 Ohms
  • Balanced XLR output jacks
  • Distortion (THD) < 0.005% at 1kHz, 0dBu
  • Output noise <-100db unweighted
  • Frequency response 10Hz to 70kHz, +0dB/-3dB
  • Main/Standby battery 9 Volt
  • Phantom Power +18 Volt DC to +48 Volt DC

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Technical Specifications

Type
Active
Freequency Range
10 - 70000 Hz
Channels
1
Input Impendance
250000 ohm
Output Impendance
600 ohm

Power Source

Phantom Power
Yes
Battery
Yes
Drift
No

Switches

Ground/Lift
Yes
Pad
Yes
Phase
No

Connections

3.5mm Jack Input
No
6.3mm Jack Input
Yes
Stereo RCA Input
No
Balanced XLR Input
No
Unbalanced XLR Input
Yes
Balanced XLR Output
Yes
Unbalanced Jack Output
Yes

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

  • Input resistance > 250k Ohm
  • Maximum input +12dBu (at 0dB) Level +32dBu (at -20dB) +52dBu (at -40dB)
  • Two parallel 1/4" jacks and one parallel XLR jack (unbalanced),
  • 1/4" Jack: Tip Hot, Sleeve Ground
  • XLR Jack: Pin 2 Hot
  • Pins 1 & 3 Ground
  • Output resistance > 600 Ohms
  • Balanced XLR output jacks
  • Distortion (THD) < 0.005% at 1kHz, 0dBu
  • Output noise <-100db unweighted
  • Frequency response 10Hz to 70kHz, +0dB/-3dB
  • Main/Standby battery 9 Volt
  • Phantom Power +18 Volt DC to +48 Volt DC

Manufacturer

Manufacturer Details

Warnings & Safety Information

Technical Specifications

Type
Active
Freequency Range
10 - 70000 Hz
Channels
1
Input Impendance
250000 ohm
Output Impendance
600 ohm

Power Source

Phantom Power
Yes
Battery
Yes
Drift
No

Switches

Ground/Lift
Yes
Pad
Yes
Phase
No

Connections

3.5mm Jack Input
No
6.3mm Jack Input
Yes
Stereo RCA Input
No
Balanced XLR Input
No
Unbalanced XLR Input
Yes
Balanced XLR Output
Yes
Unbalanced Jack Output
Yes

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

78,22 €
14,00 €   shipping cost
