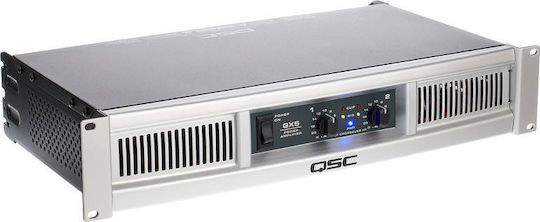

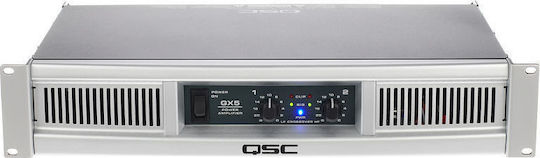

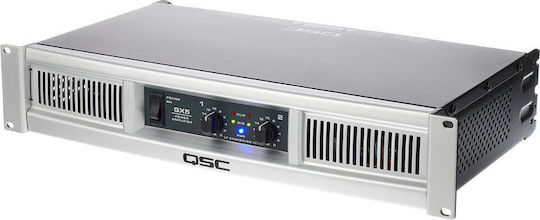

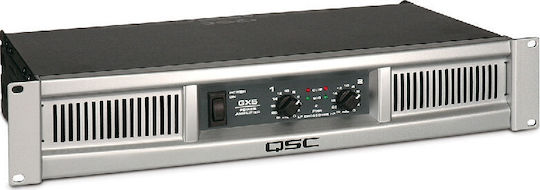

QSC GX5 PA Power Amplifier 2 Channels 700W/4Ω Black
Commercial Amplifiers

QSC GX5 PA Power Amplifier 2 Channels 700W/4Ω Black

Professional final amplifier 2x700W RMS @ 4Ω, 2x500W RMS @ 8Ω. It features RCA inputs (unbalanced), 3-pin XLR and 6.3mm jack (balanced), speakon combo outputs (for speakon and 6.3mm jack) and binding...

Professional final amplifier 2x700W RMS @ 4Ω, 2x500W RMS @ 8Ω. It features RCA inputs (unbalanced), 3-pin XLR and 6.3mm jack (balanced), speakon combo outputs (for speakon and 6.3mm jack) and binding posts. Finally, it has a crossover switch (100Hz low pass on channel 1 and high pass on channel 2). Protections include short circuit, open circuit,...

See full description See full description
Product report

Description

Description

Professional final amplifier 2x700W RMS @ 4Ω, 2x500W RMS @ 8Ω. It features RCA inputs (unbalanced), 3-pin XLR and 6.3mm jack (balanced), speakon combo outputs (for speakon and 6.3mm jack) and binding posts. Finally, it has a crossover switch (100Hz low pass on channel 1 and high pass on channel 2). Protections include short circuit, open circuit, overheating, RF, and DC faults.

Specifications:

  • Power: 2 x 700W/4Ω
  • Frequency response: 20 Hz - 20 kHz, +0, 1 dB
  • Input sensitivity: 1.2 Vrms
  • Voltage (8Ω): 34.4 dB
  • Impedance (Ω): Greater than 20k (balanced)
  • Maximum input level: +24 dB (16 Vrms)

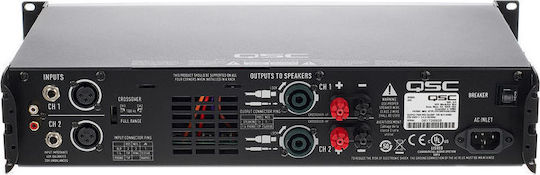

  • Inputs (channel): 3-pin XLR and 1/4" TRS, balanced, parallel Phono, unbalanced
  • Output (channel): Speakon®, 1/4", Binding Posts
  • Amplifier and Load Protection: Short circuit, open circuit, thermal, RF protection, Load protected against DC faults
  • Rear Panel Controls: Full Range / Crossover switch, 100 Hz, 3rd order LP (sub), 2nd order HP (top)


Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Technical Specifications

Amplifier Type
PA Amplifier
Type
Power Amplifier
Channels
2
Power (4Ω)
700 watt / channel
Class
H

Additional Specifications

Radio
No
Cooling system
No

Connectivity

RCA
Yes
XLR
Yes
Mini Jack (3.5mm)
No
Jack (6.3mm)
Yes
USB
No
Ethernet
No
Bluetooth
No
Mic In
No

Dimensions

Width
483 mm
Height
89 mm
Length
257 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
