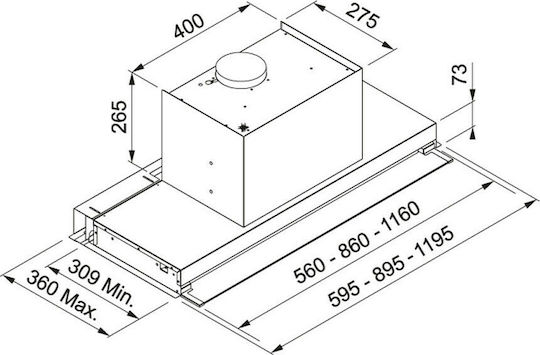

Franke Atmos 604 Ventilation Mechanism 60cm Inox
Vent Hoods

Franke Atmos 604 Ventilation Mechanism 60cm Inox Code: 3105001021

The Franke company's vent hood is built-in and energy class A. It is installed in cabinets in such a way that only its bottom surface is visible. It is quiet, as at maximum operation it does not...

The Franke company's vent hood is built-in and energy class A. It is installed in cabinets in such a way that only its bottom surface is visible. It is quiet, as at maximum operation it does not exceed 60 decibels.

The maximum suction power is 378 m³/h, capable of covering areas up to 13 square meters. It has an increased intensity function at 455 m³/h for a...

See full description See full description

  • Item

    Absorption Mechanism

    "They are built-in hoods that are installed in cabinets and only the bottom surface of the hood is visible, additionally they do not have sliding filters."

  • Noise Level

    Shows how much noise the extractor makes when it is in operation.

    2. The fewer the db, the quieter it is. An extractor with 58db or less is considered quite quiet.

  • Energy class

    The energy class categorizes devices into groups according to the current they consume, ranging from the lowest D to the highest A+++.

    2. The higher the energy class, the lower the electricity consumption.

    3. For example, for a 12 sq.m. kitchen with an extractor fan that has an absorption power of about 340m³/h and frequent weekly use, the difference in annual cost from D to A is about €6, and from A to A+++ the difference is almost negligible.

  • Extraction Power (Max)

    Displays the maximum absorption capacity. To calculate the required absorbency, knowledge of the dimensions of the kitchen space is necessary.


    For example, for a 7 sqm kitchen, the required absorption power is approximately 200m³/h, for 12 sqm it is approximately 340m³/h, and for 15 sqm it is 420m³/h and above.

  • Filter Type

    Metal

    They are used in most extractors. Metallic filters are easy to remove and clean, either in the dishwasher or by hand. They do not require frequent replacement.
  • See all
Review the product
Product report

Description

Description

The Franke company's vent hood is built-in and energy class A. It is installed in cabinets in such a way that only its bottom surface is visible. It is quiet, as at maximum operation it does not exceed 60 decibels.

The maximum suction power is 378 m³/h, capable of covering areas up to 13 square meters. It has an increased intensity function at 455 m³/h for a short period, ideal for dealing with odors during frying and grilling.

The air can be extracted through a duct or recirculated. For air extraction operation, duct installation is required. It accepts metal filters, which can be removed and washed in the dishwasher or by hand, without needing frequent replacement.

  • Width: 60cm
  • Suction Power (Max): 378m³/h
  • Suction Power (Boost): 455m³/h
  • Energy Class: A

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
3105001021

Product Details

Type
Absorption Mechanism

Type

Absorption Mechanism
"They are built-in hoods that are installed in cabinets and only the bottom surface of the hood is visible, additionally they do not have sliding filters."
Retro
No
Grease Filter Material
Metal

Grease Filter Material

Metal

They are used in most extractors. Metallic filters are easy to remove and clean, either in the dishwasher or by hand. They do not require frequent replacement.
Extraction Mode
Extraction or Recirculation

Extraction Mode

Concerns the way in which the extractor absorbs air.

Extraction or Recirculation

The extractor fan has both functions. The air that the extractor fan draws can either be extracted through a pipe or recycled back into the fan. For air extraction function, a pipe is needed to remove the air outside the kitchen.
Dual Motor
No
Type of Control
Touch Keys
Timer Function
No
Filter Cleaning Indicator
No
Washable Filter
Yes
Colour
Inox

Technical Features

Extraction Power (Max)
378 m³/h

Extraction Power (Max)

Displays the maximum absorption capacity. To calculate the required absorbency, knowledge of the dimensions of the kitchen space is necessary.


For example, for a 7 sqm kitchen, the required absorption power is approximately 200m³/h, for 12 sqm it is approximately 340m³/h, and for 15 sqm it is 420m³/h and above.
Extraction Power (Boost)
455 m³/h

Extraction Power (Boost)

The boost power enhances absorption even more for a short period of time. After a while, it returns to maximum absorption.


The function is ideal for odors during frying and grilling.

Dimensions

Width
60 cm

Energy Label

Energy Class
A

Energy Class

The energy class categorizes devices into groups according to the current they consume, ranging from the lowest D to the highest A+++.

2. The higher the energy class, the lower the electricity consumption.

3. For example, for a 12 sq.m. kitchen with an extractor fan that has an absorption power of about 340m³/h and frequent weekly use, the difference in annual cost from D to A is about €6, and from A to A+++ the difference is almost negligible.
Average Energy Consumption per Year
31 kWh/y
Extraction Flow Efficiency
B

Extraction Flow Efficiency

Expresses how effective the extractor is in absorbing odors. 2. The performance scale starts at G for less efficient extractors and goes up to A for more efficient ones. 3. Typically, a rating of D and above is a good performance for effectively absorbing odors from cooking.
Lighting Efficiency
A

Lighting Efficiency

Expresses the intensity of the hood's lighting. The scale starts from G for the lowest performance where the lighting is quite soft, up to A for the highest performance where the lighting is more intense. It is usually recommended to have a lighting performance index of C or higher to facilitate cooking with more intense lighting.
Fat Retention Efficiency
F

Fat Retention Efficiency

Shows how effectively the filters of the extractor work in retaining fat.


The scale starts from G for the lowest performance, up to A for the highest performance.


A performance rating of C and above is considered satisfactory for fat retention during cooking.
Noise Level
54 dB

Noise Level

Shows how much noise the extractor makes when it is in operation.

2. The fewer the db, the quieter it is. An extractor with 58db or less is considered quite quiet.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The Franke company's vent hood is built-in and energy class A. It is installed in cabinets in such a way that only its bottom surface is visible. It is quiet, as at maximum operation it does not exceed 60 decibels.

The maximum suction power is 378 m³/h, capable of covering areas up to 13 square meters. It has an increased intensity function at 455 m³/h for a short period, ideal for dealing with odors during frying and grilling.

The air can be extracted through a duct or recirculated. For air extraction operation, duct installation is required. It accepts metal filters, which can be removed and washed in the dishwasher or by hand, without needing frequent replacement.

  • Width: 60cm
  • Suction Power (Max): 378m³/h
  • Suction Power (Boost): 455m³/h
  • Energy Class: A

Manufacturer

Manufacturer Details

Warnings & Safety Information
Product Number
3105001021

Product Details

Type
Absorption Mechanism

Type

Absorption Mechanism
"They are built-in hoods that are installed in cabinets and only the bottom surface of the hood is visible, additionally they do not have sliding filters."
Retro
No
Grease Filter Material
Metal

Grease Filter Material

Metal

They are used in most extractors. Metallic filters are easy to remove and clean, either in the dishwasher or by hand. They do not require frequent replacement.
Extraction Mode
Extraction or Recirculation

Extraction Mode

Concerns the way in which the extractor absorbs air.

Extraction or Recirculation

The extractor fan has both functions. The air that the extractor fan draws can either be extracted through a pipe or recycled back into the fan. For air extraction function, a pipe is needed to remove the air outside the kitchen.
Dual Motor
No
Type of Control
Touch Keys
Timer Function
No
Filter Cleaning Indicator
No
Washable Filter
Yes
Colour
Inox

Technical Features

Extraction Power (Max)
378 m³/h

Extraction Power (Max)

Displays the maximum absorption capacity. To calculate the required absorbency, knowledge of the dimensions of the kitchen space is necessary.


For example, for a 7 sqm kitchen, the required absorption power is approximately 200m³/h, for 12 sqm it is approximately 340m³/h, and for 15 sqm it is 420m³/h and above.
Extraction Power (Boost)
455 m³/h

Extraction Power (Boost)

The boost power enhances absorption even more for a short period of time. After a while, it returns to maximum absorption.


The function is ideal for odors during frying and grilling.

Dimensions

Width
60 cm

Energy Label

Energy Class
A

Energy Class

The energy class categorizes devices into groups according to the current they consume, ranging from the lowest D to the highest A+++.

2. The higher the energy class, the lower the electricity consumption.

3. For example, for a 12 sq.m. kitchen with an extractor fan that has an absorption power of about 340m³/h and frequent weekly use, the difference in annual cost from D to A is about €6, and from A to A+++ the difference is almost negligible.
Average Energy Consumption per Year
31 kWh/y
Extraction Flow Efficiency
B

Extraction Flow Efficiency

Expresses how effective the extractor is in absorbing odors. 2. The performance scale starts at G for less efficient extractors and goes up to A for more efficient ones. 3. Typically, a rating of D and above is a good performance for effectively absorbing odors from cooking.
Lighting Efficiency
A

Lighting Efficiency

Expresses the intensity of the hood's lighting. The scale starts from G for the lowest performance where the lighting is quite soft, up to A for the highest performance where the lighting is more intense. It is usually recommended to have a lighting performance index of C or higher to facilitate cooking with more intense lighting.
Fat Retention Efficiency
F

Fat Retention Efficiency

Shows how effectively the filters of the extractor work in retaining fat.


The scale starts from G for the lowest performance, up to A for the highest performance.


A performance rating of C and above is considered satisfactory for fat retention during cooking.
Noise Level
54 dB

Noise Level

Shows how much noise the extractor makes when it is in operation.

2. The fewer the db, the quieter it is. An extractor with 58db or less is considered quite quiet.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

964,00 €
56,00 €   shipping cost
