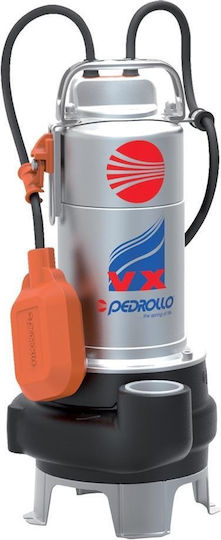

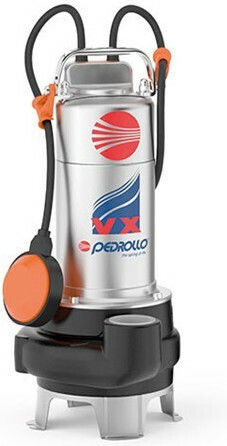

Pedrollo VXm 10/35-N Single-phase Pump Waste Water / Sewage 1hp 48SGV91A0A1
Submersible Water Pumps

Pedrollo VXm 10/35-N Single-phase Pump Waste Water / Sewage 1hp 48SGV91A0A1

Key features:

  • Power (hp-Watt): 1Hp-736Watt
  • Max Performance (M): 11.00
  • Max Flow Rate (m3/h): 24.00
  • Maximum Submersion Depth (M): 5
See full description

  • Horsepower

    Horsepower indicates the kinetic power of the pump. Higher horsepower means more efficiency in water pumping, affecting the flow (l/h) and the head (m).

  • Voltage

    Single-Phase

    Single-phase power supply refers to the provision of electrical energy from single-phase current (e.g., 230V AC), which is the most common type of supply for residential and small commercial applications.

  • Power

    It is the energy consumed by the motor to pump water. The greater the power, the more effectively it can lift and move water, especially over long distances or heights.

  • Manometric Height

    11

    The Maximum Head Height refers to the maximum height at which the pump can lift water against resistance (such as pipes or filters). As the head height increases, the pump's flow rate decreases.

    • The maximum head height is considered by manufacturers to be the point where the water will just barely reach.
    • The maximum performance is considered by manufacturers to be the water flow at 0-1 meter head height.
  • See all
Product report

Description

Description

Sewage pump for domestic, urban, and industrial installations. Suitable for sewage wells as well as for draining flooded areas, cellars, underground parking lots, etc.

Features

  • Type: VXm 10/35
  • Pump Type: Vortex
  • Power Supply: Electric Power
  • Motor Power (Hp): 1.00
  • Power (hp-Watt): 1Hp-736Watt
  • Voltage (Volt): 220 Volt/50 Hz
  • Absorption (A): 4.80
  • Use: Sewage
  • Inlet Diameter Φ (Inch-mm): 1 1/2
  • Outlet Diameter Φ (Inch-mm): 1 1/2"-40mm
  • Max Performance (M): 11.00
  • Max Flow (m3/h): 24.00
  • Body Material: Stainless Steel AISI 304
  • Impeller Material: Stainless Steel AISI 304
  • Pumped Liquid Temperature (°C): 40
  • Solid Passage Φ(mm): 40
  • Maximum Submersion Depth (M): 5
  • Cable Length (M): 5
  • Float: Yes
  • Additional Features: Suitable for sewage with high dilution in water - Equipped with double seal
  • Net Weight (Kg): 13.70
  • Product Length (cm): 24.30
  • Product Width (cm): 19.00
  • Product Height (cm): 41.00

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

Type
Waste Water / Sewage

Type

Waste Water / Sewage

Waste water / sewage pumps are used for pumping and transporting waste water, sewage, and other liquids containing solids or particles
Power Source
Electric

Power Source

Electric
The power supply refers to the pump's need for electrical energy from an external power source, such as single-phase or three-phase power.
Voltage
Single-Phase

Voltage

Single-Phase

Single-phase power supply refers to the provision of electrical energy from single-phase current (e.g., 230V AC), which is the most common type of supply for residential and small commercial applications.
Horsepower
1 hp

Horsepower

Horsepower indicates the kinetic power of the pump. Higher horsepower means more efficiency in water pumping, affecting the flow (l/h) and the head (m).
Power
750 W

Power

It is the energy consumed by the motor to pump water. The greater the power, the more effectively it can lift and move water, especially over long distances or heights.
Cable Length
5 m

Features

with Cutter Impeller
No

with Cutter Impeller

Components that chop, "cut" solid materials, such as organic waste or other particles, before they pass into the pump. They are mainly used in sewage or dirty water pumps, preventing clogging or damage to the system.
Float switch
Yes

Float switch

It is a mechanism that automatically controls the operation of the pump. When the water level reaches a predetermined height, the float activates the pump.
Outlet Nozzle
1 1/2"

Outlet Nozzle

The outlet nozzle refers to the point or the external diameter of the pump from which the pumped water or liquid exits. It is an important feature for determining the connection of the pump with the piping system and affects the flow capacity of the liquid.
Vortex
Yes

Vortex

The vortex system in submersible water pumps uses vortex technology to create a rotating water current, which helps in the efficient transfer of water, even when it contains particles or solids.

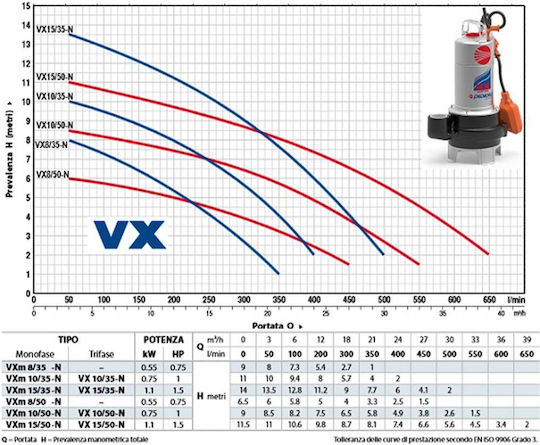

Pumping Specifications

Maximum Head Height
11 m

Maximum Head Height: 11


The Maximum Head Height refers to the maximum height at which the pump can lift water against resistance (such as pipes or filters). As the head height increases, the pump's flow rate decreases.

  • The maximum head height is considered by manufacturers to be the point where the water will just barely reach.
  • The maximum performance is considered by manufacturers to be the water flow at 0-1 meter head height.
Maximum Output
24 m³/h

Maximum Output

The maximum output or flow of a submersible water pump, as defined by the manufacturers, is the maximum amount of water the pump can move under ideal conditions, usually with zero head (i.e., no lift resistance).
Maximum Particle Size
40 mm

Maximum Particle Size

Specifies the largest size of solid particles (such as sand, stones, or other impurities) that the device can pump without clogging or being damaged.

Materials & Construction

Set
No
Stainless
Yes

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Reviews (2)

Reviews

5.0
2
5.0
Review this product
  1. 2
  2. 4 stars
    0
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product

Description & Specifications

Sewage pump for domestic, urban, and industrial installations. Suitable for sewage wells as well as for draining flooded areas, cellars, underground parking lots, etc.

Features

  • Type: VXm 10/35
  • Pump Type: Vortex
  • Power Supply: Electric Power
  • Motor Power (Hp): 1.00
  • Power (hp-Watt): 1Hp-736Watt
  • Voltage (Volt): 220 Volt/50 Hz
  • Absorption (A): 4.80
  • Use: Sewage
  • Inlet Diameter Φ (Inch-mm): 1 1/2
  • Outlet Diameter Φ (Inch-mm): 1 1/2"-40mm
  • Max Performance (M): 11.00
  • Max Flow (m3/h): 24.00
  • Body Material: Stainless Steel AISI 304
  • Impeller Material: Stainless Steel AISI 304
  • Pumped Liquid Temperature (°C): 40
  • Solid Passage Φ(mm): 40
  • Maximum Submersion Depth (M): 5
  • Cable Length (M): 5
  • Float: Yes
  • Additional Features: Suitable for sewage with high dilution in water - Equipped with double seal
  • Net Weight (Kg): 13.70
  • Product Length (cm): 24.30
  • Product Width (cm): 19.00
  • Product Height (cm): 41.00

Manufacturer

Manufacturer Details

Warnings & Safety Information

Dimensions

Type
Waste Water / Sewage

Type

Waste Water / Sewage

Waste water / sewage pumps are used for pumping and transporting waste water, sewage, and other liquids containing solids or particles
Power Source
Electric

Power Source

Electric
The power supply refers to the pump's need for electrical energy from an external power source, such as single-phase or three-phase power.
Voltage
Single-Phase

Voltage

Single-Phase

Single-phase power supply refers to the provision of electrical energy from single-phase current (e.g., 230V AC), which is the most common type of supply for residential and small commercial applications.
Horsepower
1 hp

Horsepower

Horsepower indicates the kinetic power of the pump. Higher horsepower means more efficiency in water pumping, affecting the flow (l/h) and the head (m).
Power
750 W

Power

It is the energy consumed by the motor to pump water. The greater the power, the more effectively it can lift and move water, especially over long distances or heights.
Cable Length
5 m

Features

with Cutter Impeller
No

with Cutter Impeller

Components that chop, "cut" solid materials, such as organic waste or other particles, before they pass into the pump. They are mainly used in sewage or dirty water pumps, preventing clogging or damage to the system.
Float switch
Yes

Float switch

It is a mechanism that automatically controls the operation of the pump. When the water level reaches a predetermined height, the float activates the pump.
Outlet Nozzle
1 1/2"

Outlet Nozzle

The outlet nozzle refers to the point or the external diameter of the pump from which the pumped water or liquid exits. It is an important feature for determining the connection of the pump with the piping system and affects the flow capacity of the liquid.
Vortex
Yes

Vortex

The vortex system in submersible water pumps uses vortex technology to create a rotating water current, which helps in the efficient transfer of water, even when it contains particles or solids.

Pumping Specifications

Maximum Head Height
11 m

Maximum Head Height: 11


The Maximum Head Height refers to the maximum height at which the pump can lift water against resistance (such as pipes or filters). As the head height increases, the pump's flow rate decreases.

  • The maximum head height is considered by manufacturers to be the point where the water will just barely reach.
  • The maximum performance is considered by manufacturers to be the water flow at 0-1 meter head height.
Maximum Output
24 m³/h

Maximum Output

The maximum output or flow of a submersible water pump, as defined by the manufacturers, is the maximum amount of water the pump can move under ideal conditions, usually with zero head (i.e., no lift resistance).
Maximum Particle Size
40 mm

Maximum Particle Size

Specifies the largest size of solid particles (such as sand, stones, or other impurities) that the device can pump without clogging or being damaged.

Materials & Construction

Set
No
Stainless
Yes

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
