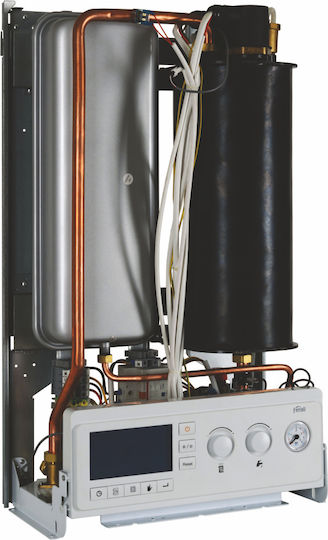

Ferroli LEB 12.0 TS Wall-mounted Boiler Electric Current 10318kcal/h
Boilers

Ferroli LEB 12.0 TS Wall-mounted Boiler Electric Current 10318kcal/h

Single-phase and three-phase operation up to 9kW, only three-phase up to 24 kW.

Power adjustment up to 6 stages.

Variable operating temperature system via external temperature sensor (optional)...

Single-phase and three-phase operation up to 9kW, only three-phase up to 24 kW.

Power adjustment up to 6 stages.

Variable operating temperature system via external temperature sensor (optional) (compensation).

Operation scheduling with built-in timer or by connecting a time thermostat (optional).

Two anti-freeze protection modes.

Possibility of connection in...

See full description See full description
Review the product
Product report

Description

Description

Single-phase and three-phase operation up to 9kW, only three-phase up to 24 kW.

Power adjustment up to 6 stages.

Variable operating temperature system via external temperature sensor (optional) (compensation).

Operation scheduling with built-in timer or by connecting a time thermostat (optional).

Two anti-freeze protection modes.

Possibility of connection in an array via an external controller.

Includes:

  • Three-speed circulator with anti-blocking system.
  • Expansion tank.
  • Hydraulic bridge.
  • Safety valve.
  • Manual filling.

Can manage an external hot water production tank.

Technical Specifications:

  • Voltage: 3x230V/400V+N+PE/50Hz
  • Current: 3*43 A
  • Power: 12kW
  • Heating water temperature: 80 C
  • Expansion tank: 10 LT
  • Operating pressure: min 0.8 bar max 3.0 bar
  • Circuit connections: 3/4" G
  • Filling / draining: 1/2" G
  • Protection class: IP 40
  • Dimensions HxWxD: 740x440x340 mm
  • Empty device weight: 40 kg

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

Nominal Power Output Rate
10318 kcal/h
Placement
Wall Mounted
Individual Unit
No

Individual Unit

Compact boiler room system.
Condensation
No

Condensation

They also utilize the temperature of their exhaust gases, thus greatly increasing their efficiency and achieving greater fuel economy.
Pyrolysis
No

Pyrolysis

They maximize the use of solid fuels, increasing their efficiency while reducing waste.
Air Duct Boiler
No
with Burner
No

Provision

Petroleum
No
Gas
No
Of Wood
No
Pellet
No
Electric Current
Yes
Biomass
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Single-phase and three-phase operation up to 9kW, only three-phase up to 24 kW.

Power adjustment up to 6 stages.

Variable operating temperature system via external temperature sensor (optional) (compensation).

Operation scheduling with built-in timer or by connecting a time thermostat (optional).

Two anti-freeze protection modes.

Possibility of connection in an array via an external controller.

Includes:

  • Three-speed circulator with anti-blocking system.
  • Expansion tank.
  • Hydraulic bridge.
  • Safety valve.
  • Manual filling.

Can manage an external hot water production tank.

Technical Specifications:

  • Voltage: 3x230V/400V+N+PE/50Hz
  • Current: 3*43 A
  • Power: 12kW
  • Heating water temperature: 80 C
  • Expansion tank: 10 LT
  • Operating pressure: min 0.8 bar max 3.0 bar
  • Circuit connections: 3/4" G
  • Filling / draining: 1/2" G
  • Protection class: IP 40
  • Dimensions HxWxD: 740x440x340 mm
  • Empty device weight: 40 kg

Manufacturer

Manufacturer Details

Warnings & Safety Information

Dimensions

Nominal Power Output Rate
10318 kcal/h
Placement
Wall Mounted
Individual Unit
No

Individual Unit

Compact boiler room system.
Condensation
No

Condensation

They also utilize the temperature of their exhaust gases, thus greatly increasing their efficiency and achieving greater fuel economy.
Pyrolysis
No

Pyrolysis

They maximize the use of solid fuels, increasing their efficiency while reducing waste.
Air Duct Boiler
No
with Burner
No

Provision

Petroleum
No
Gas
No
Of Wood
No
Pellet
No
Electric Current
Yes
Biomass
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

1.040,00 €
62,00 €   shipping cost
