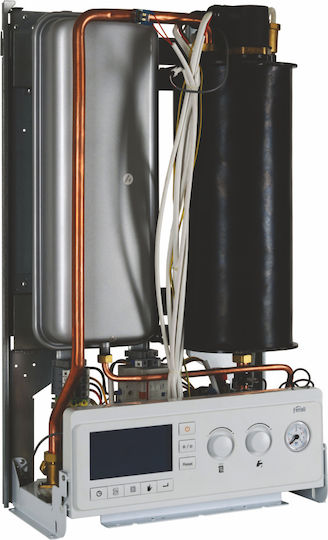

Ferroli LEB 9.0 TS Wall-mounted Boiler Electric Current 7738kcal/h
Boilers

Ferroli LEB 9.0 TS Wall-mounted Boiler Electric Current 7738kcal/h

Single-phase and three-phase operation up to 9kW, only three-phase up to 24 kW. Power adjustment up to 6 stages.

Variable operating temperature system via external temperature sensor (optional)...

Single-phase and three-phase operation up to 9kW, only three-phase up to 24 kW. Power adjustment up to 6 stages.

Variable operating temperature system via external temperature sensor (optional) (compensation).

Operation programming with built-in timer or with connection to a time thermostat (optional).

Two anti-freeze protection functions.

Possibility of...

See full description See full description
Review the product
Product report

Description

Description

Single-phase and three-phase operation up to 9kW, only three-phase up to 24 kW. Power adjustment up to 6 stages.

Variable operating temperature system via external temperature sensor (optional) (compensation).

Operation programming with built-in timer or with connection to a time thermostat (optional).

Two anti-freeze protection functions.

Possibility of connection in an array via an external controller.

Includes:

  • Three-speed circulator with anti-blocking system.
  • Expansion tank.
  • Hydraulic bridge.
  • Safety valve.
  • Manual filling.

Can manage an external domestic hot water production tank.

Technical Specifications:

  • Voltage: 1x230V+N+PE/50Hz
  • Current: 41 A
  • Power: 9kW
  • Heating water temperature: 80 C
  • Expansion tank: 10 LT
  • Operating pressure: min 0.8 bar, max 3.0 bar
  • Circuit connections: 3/4" G
  • Filling / draining: 1/2" G
  • Protection class: IP 40
  • Dimensions HxWxD: 740x440x265 mm
  • Empty device weight: 29.5 kg

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

Nominal Power Output Rate
7738 kcal/h
Placement
Wall Mounted
Individual Unit
No

Individual Unit

Compact boiler room system.
Condensation
No

Condensation

They also utilize the temperature of their exhaust gases, thus greatly increasing their efficiency and achieving greater fuel economy.
Pyrolysis
No

Pyrolysis

They maximize the use of solid fuels, increasing their efficiency while reducing waste.
Air Duct Boiler
No
with Burner
No

Provision

Petroleum
No
Gas
No
Of Wood
No
Pellet
No
Electric Current
Yes
Biomass
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Single-phase and three-phase operation up to 9kW, only three-phase up to 24 kW. Power adjustment up to 6 stages.

Variable operating temperature system via external temperature sensor (optional) (compensation).

Operation programming with built-in timer or with connection to a time thermostat (optional).

Two anti-freeze protection functions.

Possibility of connection in an array via an external controller.

Includes:

  • Three-speed circulator with anti-blocking system.
  • Expansion tank.
  • Hydraulic bridge.
  • Safety valve.
  • Manual filling.

Can manage an external domestic hot water production tank.

Technical Specifications:

  • Voltage: 1x230V+N+PE/50Hz
  • Current: 41 A
  • Power: 9kW
  • Heating water temperature: 80 C
  • Expansion tank: 10 LT
  • Operating pressure: min 0.8 bar, max 3.0 bar
  • Circuit connections: 3/4" G
  • Filling / draining: 1/2" G
  • Protection class: IP 40
  • Dimensions HxWxD: 740x440x265 mm
  • Empty device weight: 29.5 kg

Manufacturer

Manufacturer Details

Warnings & Safety Information

Dimensions

Nominal Power Output Rate
7738 kcal/h
Placement
Wall Mounted
Individual Unit
No

Individual Unit

Compact boiler room system.
Condensation
No

Condensation

They also utilize the temperature of their exhaust gases, thus greatly increasing their efficiency and achieving greater fuel economy.
Pyrolysis
No

Pyrolysis

They maximize the use of solid fuels, increasing their efficiency while reducing waste.
Air Duct Boiler
No
with Burner
No

Provision

Petroleum
No
Gas
No
Of Wood
No
Pellet
No
Electric Current
Yes
Biomass
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
