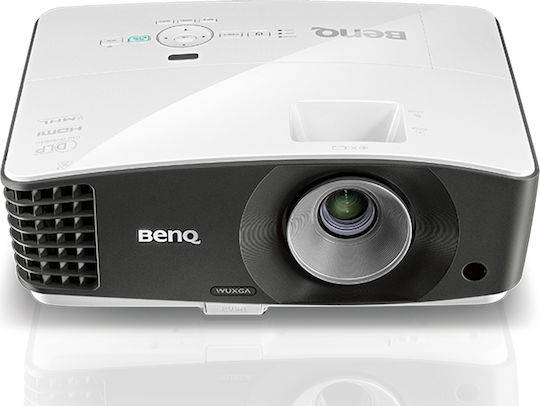

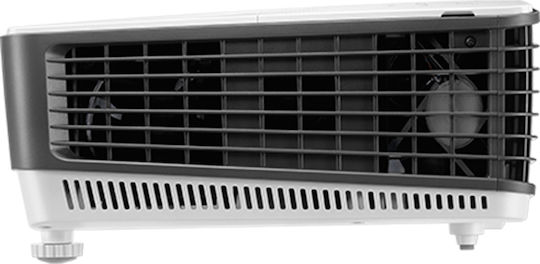

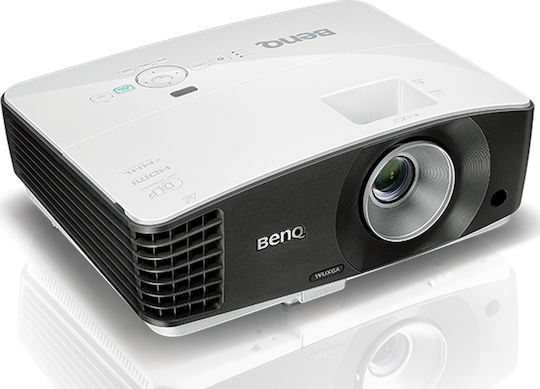

BenQ MU686 9H.JFM77.13E 3D Projector DLP (DMD) Full HD Standard Lamp with Built-in Speakers White
Projectors

BenQ MU686 9H.JFM77.13E 3D Projector DLP (DMD) Full HD Standard Lamp with Built-in Speakers White

Type: DLP WUXGA

Resolution: 1920x1200

Brightness: 3500 ANSI lumens

Contrast: 20000:1

Image Size (Diagonal): 30" - 300"

Zoom: 1.3:1

Throw Ratio: 1.15-1.49 (Wide 95” 3% @ 2.42m)

Inputs:

  • HDMI x2 (HDMI...

Type: DLP WUXGA

Resolution: 1920x1200

Brightness: 3500 ANSI lumens

Contrast: 20000:1

Image Size (Diagonal): 30" - 300"

Zoom: 1.3:1

Throw Ratio: 1.15-1.49 (Wide 95” 3% @ 2.42m)

Inputs:

  • HDMI x2 (HDMI with MHL2.0 x1, HDMI x 1)
  • MHL x 1 (HDMI with MHL2.0)
  • VGA (D-sub 15pin)
  • USB (Type A for peripheral power)
  • USB (Mini-B)
  • Audio in

Outputs:

  • Monitor out (D-sub...
See full description See full description

Top specs

  • Projection Technology

    This is the way in which the light from the projector lamp is transformed into an image to be projected onto a surface.

    DLP (DMD)

    In this technology (Digital Light Processing), which is the most widespread, the image is created by a chip with microscopic mirrors and a rotating colored disc. The chip is called DMD (Digital Micromirror Device).
  • Image Size 30 - 300 "

  • Native Resolution

    This refers to the number of pixels in which the projected image is divided horizontally and vertically. The more pixels, the higher and better the resolution. They are classified from lowest to highest resolution as follows: HD, Full HD, 4K Ultra HD.
  • Usage Professional
  • Connectivity Analog Audio, Composite Video, HDMI, MHL, RS-232, USB-A, VGA
  • See all

Learn more about invoicing
Review the product
Product report

Description

Description

Type: DLP WUXGA

Resolution: 1920x1200

Brightness: 3500 ANSI lumens

Contrast: 20000:1

Image Size (Diagonal): 30" - 300"

Zoom: 1.3:1

Throw Ratio: 1.15-1.49 (Wide 95” ±3% @ 2.42m)

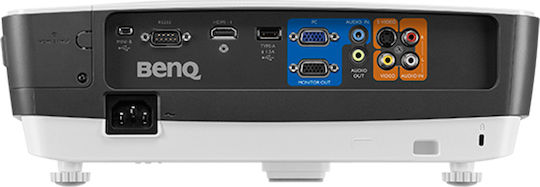

Inputs:

  • HDMI x2 (HDMI with MHL2.0 x1, HDMI x 1)
  • MHL x 1 (HDMI with MHL2.0)
  • VGA (D-sub 15pin)
  • USB (Type A for peripheral power)
  • USB (Mini-B)
  • Audio in

Outputs:

  • Monitor out (D-sub 15pin)
  • Audio out
  • Speaker 2W

Communication Ports: RS232 (DB-9pin), IR receiver

Lamp (Normal/Economic/SmartEco/Lampsave): 3000/4000/6000/7500 hours

Accessories: Remote control with battery, power cable, VGA cable (D-sub 15pin)

Net Weight: 3.3kg

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Light Source Specifications

Projection Technology
DLP (DMD)

Projection Technology

This is the way in which the light from the projector lamp is transformed into an image to be projected onto a surface.

DLP (DMD)

In this technology (Digital Light Processing), which is the most widespread, the image is created by a chip with microscopic mirrors and a rotating colored disc. The chip is called DMD (Digital Micromirror Device).
Light Source
Simple Lamp

Light Source

Simple Lamp

Greater brightness and shorter lifespan than LED bulbs.
Light Source Power
240 W
Light Source Life (Maximum)
7500 hrs
Brightness
3500 ANSI Lumens

Display & Image Features

Native Resolution
1920 x 1200

Native Resolution

This refers to the number of pixels in which the projected image is divided horizontally and vertically. The more pixels, the higher and better the resolution. They are classified from lowest to highest resolution as follows: HD, Full HD, 4K Ultra HD.
Maximum Resolution
1920 x 1200
Throw Ratio
1.15 :1

Throw Ratio

The throw ratio or projection distance ratio indicates the width of the image produced by the projector when placed at a specific distance from the screen.

2. For example, a throw ratio of 1.3:1 means that the image will have a width of 1 meter when the projector is placed at a distance of 1.3 meters from the screen.
Contrast
20000 :1

Contrast

Contrast refers to the difference between the brightest and darkest points of an image. It is measured as a ratio, e.g., 3000:1, where a higher ratio means deeper blacks and more vibrant colors, thus improving image quality.
Image Size
30 - 300 "
Aspect Ratio
16:10

Main Specifications

Use
Professional
Noise Level
31 dB
Portable (Mini)
No
Built-in Speakers
Yes
3D Playback
Yes
Miracast / Screen Mirroring
No
Android Operating System
No
WiFi Ready
No

WiFi Ready

Does not have built-in WiFi but requires the purchase of an additional adapter for remote connection.
Chromecast Built-In
No
Weight
3.3 kg
Colour
White
Connectivity
Analog Audio, Composite Video, HDMI, MHL, RS-232, USB-A, VGA

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
