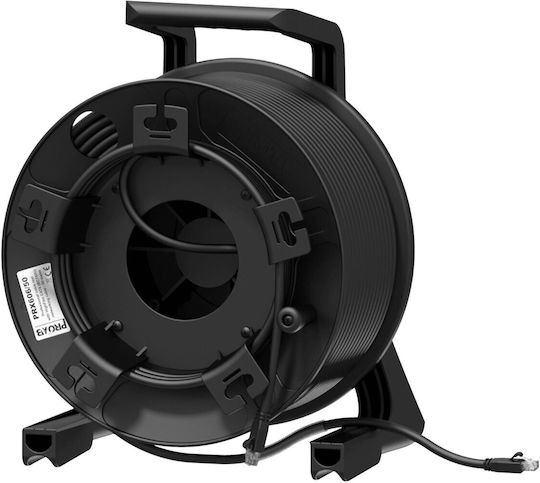

Cable reel with end-tipped CAT6 - U/UTP 50 meters. The cable features RJ45 - HighFlex connectors, and the reel's design includes an ergonomic handle, a support with 5 meters of cable at the front, and a brake. It is impact-resistant and has a polycarbonate (PC) frame.

• Dimensions: 312 x 392 x 234 mm (W x H x D)
• Inner conductor insulation material: HDPE 1.02 mm (Ø)
• Inner conductor insulation colors: Green / White & Green, Blue / White & Blue, Orange / White & Orange, Brown / White & Brown
• Inner jacket material: Durable PVC 6.6 mm (Ø)
• Outer jacket material: Flexible PVC 8.2 mm (Ø)
• Outer jacket color: Black
• Cable type: U/UTP CAT6 Networking cable
• Conductor material: BC 7 x 0.2 mm (Ø) (OFC)
• Cross-sectional area: 0.22 mm²
• Separator: Cross web Filling (PE)
• Gauge: 24 AWG
• Number of conductors: 8 (4 pairs)
• Lay length of conductors: ≤ 30 mm
• Connection type: RJ45 male to RJ45 male

Mechanical characteristics:

• Temperature range:
• Static installation: -20°C to +75°C
• Flexible installation: -15°C to +60°C
• Bending radius:
• Static installation: 10 x outer diameter
• Flexible installation: 12 x outer diameter

Electrical characteristics:

• Maximum DC resistance: 140 (Ω / Km)
• Unbalanced DC resistance: 5 %
• AC voltage voltage: 1.5 (KV / 1 min. DC)
• Maximum delay / Skew: 45 (ns / 100 m)
• NOMINAL voltage: 300 V
• Nominal propagation velocity: 65 %
• Characteristic impedance: 100 Ω ± 15 Ω
• Nominal mutual capacitance: ≤ 5.6 (nF / 100 m)
• Pair-to-ground capacitance imbalance: ≤ 330 (nF / 100 m)

Standards and regulations:

• Complies with RoHS2: According to EU Directive 2011/65/EU
• Complies with Reach: According to EC Regulation 1907/2006
• Indoor / outdoor use: Indoor
• Cabling standard: ISO/IEC11801, IEC61156, UL444, ANSI TIA-EIA 568C.2
